Details

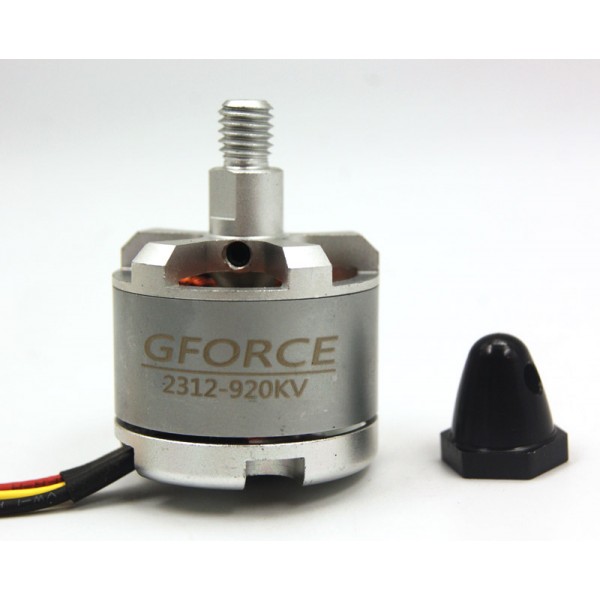

This one is 2313 960kv motor with regular reversed shaft, not 920kv as labelled.
If you want to use this 2312 960KV Brushless Motor, you need to change the ESC to DJI new ESC 2.0 at the same time.
2.0mm bullet connectors are pre-soldered.
This motor is a upgrade from the DJI 2212 920kv motor, and can used be used on DJI Phantom 2, Vision, Vision+ and F450.
Specifications:
- Diameter: 28.9mm
- Length: 13.7mm
- Stator diameter: 23mm
- Stator length: 12mm
- Shaft Diamter: 3mm
- Weight: 65g
- Input Voltage: 2~3S LiPO
- No load current: 0.4A
Additional Information
| SKU | VHB-MT-5248 |
|---|---|
| Motor Weight (g) | 65 |
| KV | 960 |
| Estimated Output (watt) | No |
| Motor Type | Out-Runner |
| Motor Class | No |
| Motor Usage | Multi-Rotor |
