Description:

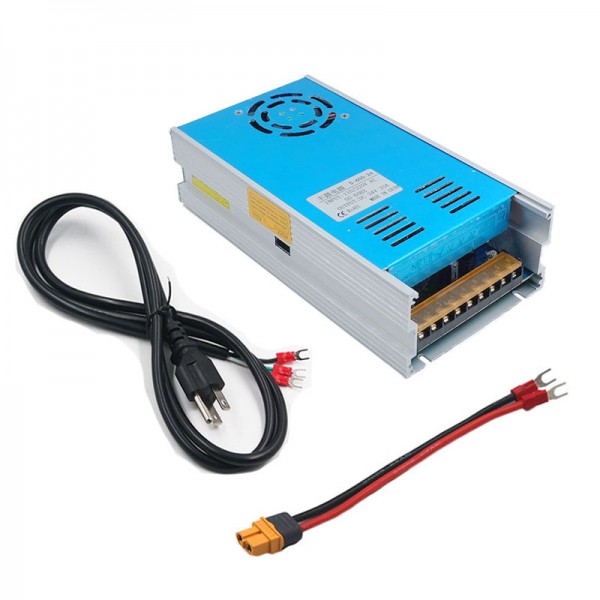

• Power supply and all the necessary cables to power the iSDT SC-620 charger.
• Input: AC 110-220V 50/60Hz
• Output: DC 24V 25A
• Output Power: 600W
• Dimensions: 8.7 x 4.5 x 2.4in (220 x 115 x 60mm)
• Wall outlet wire screw terminal connection: Black wire to "L"; White wire to "N"; Green wire to GROUND.(or Brown = "L", Blue = "N", Green = GROUND)
• Charger power wire screw terminal connection: Red wire to "+V"; Black wire to "-V".

Package Content:

• 1 x AC 110V/220V to DC 24V 25A Power Supply
• 1 x 3-Prong Power Wire
• 1 x XT60 power wire for connecting to charger

Safety Note:

• When using high voltage input, do not remove the cover due to electrocution risk.
• You may need to select 110V/220V input by switch before power on. Please check the input voltage selection before use.
