Details
Download the manual, please Click here
Features:
- 100% brand new and high quality
- Add holes for the pins. So it can be connected with normal Dubond line.
- Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset
- Universal architecture - Supports most parallel software MACH3, KCAM4, EMC2 etc!
- Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop
- Bipolar constant current chopper drive with non-resonant region controls motors smoothly through range without creep effect
- Professional design - Two stage signal processing with super anti-jamming
- 4 channel inputs interface- Can be used for XYZ limit and emergency stop
- Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
- Full closed-type optical isolation to protect the user's computer and equipment
- On board current switching - Power output can be set according to specific user requirement
- Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment
- Adjustable drive current settings for axis - 25%,50%,75%,100% of full current can be set for different stepper motors
- 11/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
Specifications
| Electrical properties (ambient temperature Tj = 25 ℃ pm)： | |
| Input Power | 12-36V DC power supply |
| Stepper motor drive current | 3A(peak value 3.5A)/phase |
| Drive type | Double-pole constant flow PWM actuation output |
| Compatible Stepper motors | 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max. |
| Dimensions | 18 * 14 * 4 cm (L*W*H) |
Description:
- Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
- 11/16 microstep setting - Higher accuracy and smoother operation
- Power supply DC 12-36V (not included, please feel free to contact us if you need !)
- This driver get its power from the same unit as the steppers, it doesn't require a separate power source
- Voltage Selection:
12-16V DC power supply for Nema 17 stepper motors
16-24V DC power supply for Nema 23 stepper motors
24-36V DC power supply for Nema 34 stepper motors
(High voltage will burn up the chips or stepper motors!!!) - Ampertage Selection:
Output current of the power supply can be calculated by the following expressions:
Output current = Rated current of your stepper motors * quantity + 2A
(For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good.
If you are not sure about the selection of power supply, please feel free to contact us for help - The power output of 12V shall be applied to the radiator fan of 12V
- Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
- Suitable for unipolar or bipolar stepper motors.
- Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.
Dip Settings:
Package Content:

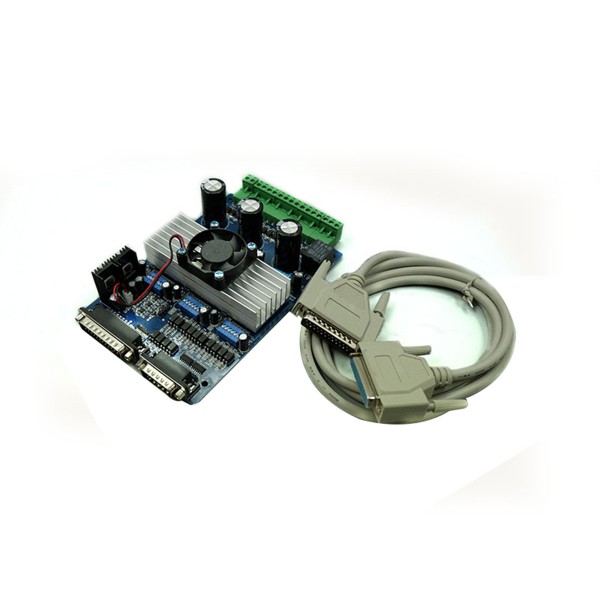

- 1 x TB6560 3-Axis Stepper Motor Driver Controller Board
- 1 x Cable
Additional Information
| SKU | VHB-AC-5137 |
|---|
Customer Reviews
- Blew up on first try! Review by Edwin
-
*****For the record I like Value Hobby and am not trying to discredit them.*****Value Overall Quality
This board arrived in two days-Impressive!
The instructions were not in the box, so to the computer I went. Downloaded some Chinglish instructions that were useless! I did lots of research online and found what matched up with the chinglish. Set up LinuxCNC like others that bought this and tried to step the Y axis and bang! Big hole in the driver chip!!!! There nees to be better documentation and normal settings for these boards. I also found out people blow the drivers a lot because the lack of documentation, I should have done my homework before buying. If you know how to use this board then this is for you if you do not stick to boards that have more documentation like the Arduino CNC shield works nice. (Posted on 10/3/2016)
