Details

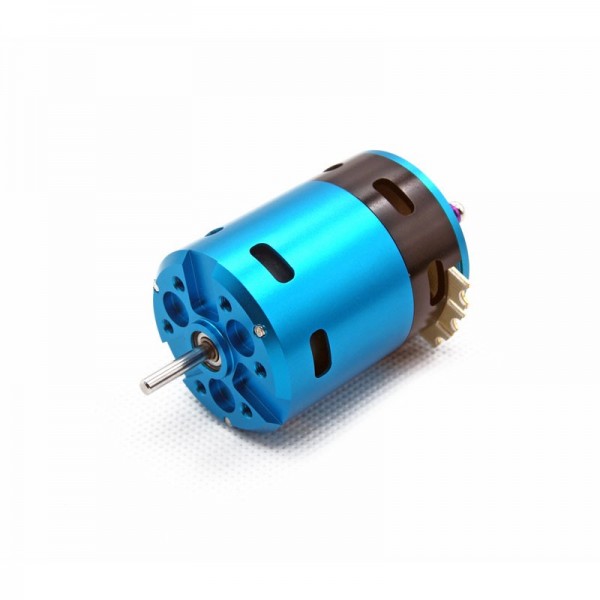

The GForce 540Y sensored brushless motor is hand-wound for maximum copper fill, and each motor is individually tested to ensure the best quality. The 540Y series is suitable for 1/10 scale vehicels, offering high torque and excellent low-speed driveability. This series of sensored brushless motor is compatible with any sensored/sensorless car ESC.
|
Sensored /Sensorless |
sensored |
Weight (g) |
162 |
|
Turns |
3.5 |
No-load Current(A) |
11 |
|
KV |
9100 |
Max current(A) |
83 |
|
Poles |
2 |
Resistance (Ω) |
0.0021 |
|
Diameter(mm) |
35.9 |
Battery cell |
2-3 |
|
Motor length(mm) |
51.5 |
Max Temperature |
180° |
|
Shaft diameter(mm) |
3.17 |
Suitable car scale |
1/10 |
|
Shaft length(mm) |
13.6 |
Suitable ESC |
120A |
Additional Information
| SKU | XTM-MT-1230 |
|---|---|
| Motor Weight (g) | 162 |
| KV | 9100 |
| Estimated Output (watt) | 122 |
| Motor Type | In-Runner |
| Motor Class | B540 (Φ36mm) |
| Motor Usage | Car |
