Details

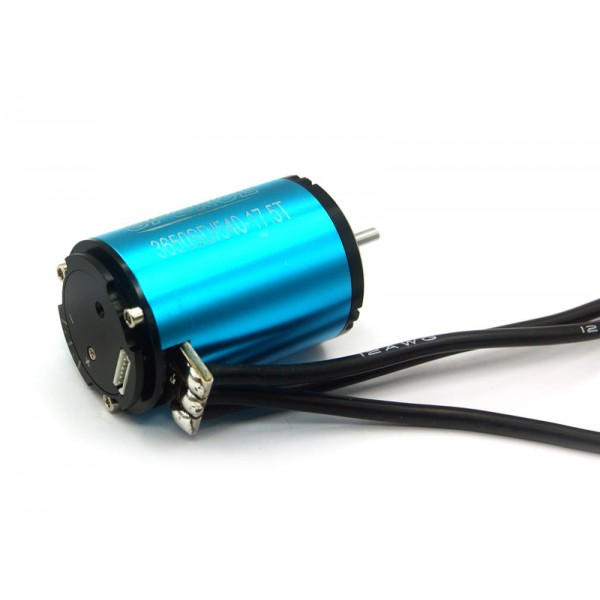

GForce 3650SD is an 540 class sensored brushless inrunner motor is for 1/10 scale vehicles. The motor lead is soldered to the motor in the factory. Sensor cable and 3.5 mm bullet connectors are included.
Specifications:
- Can Size: 540
- Turns: 17.5
- KV: 1870
- Poles: 2
- Sensored: yes
- Max Voltage: 26.6V
- Max Current: 19A
- Max Power: 500W
- Resistance: 0.0514ohm
- No Load Current: 0.5A
- Shaft Diameter: 3.17mm
- Diamter: 36mm
- Length: 52mm
- Weight: 6.2 oz (175 g)
Dimensions:
Additional Information
| SKU | SAT-MT-2740 |
|---|---|
| Motor Weight (g) | 210 |
| KV | 1870 |
| Estimated Output (watt) | No |
| Motor Type | In-Runner |
| Motor Class | B540 (Φ36mm) |
| Motor Usage | Car |
Customer Reviews
- Great value needs a little work Review by Dean
-
OK first off I am running a Mamba Max Pro ESC and GForce 3S2200 40 LiPo packs. This setup is in an Axial Wraith set up with DIG and 4WS.Overall Quality Value
This was my first steps into brushless motors. I had problems initially as the way the motor comes wired was backwards for the Mamba Max Pro. I un-soldered the motor wires and flipped them so that they came off the end bell side of the motor. A-A B-B C-C and everything is now fine and works as expected. The motor gives good speed and torque No more brushed motors for me! (Posted on 8/17/2014)
