Features:

• It is equipped with KAWASAKI stator for better reducing iron loss and heat. Longer life cycle and less friction with NSK/NMB bearing from Japan.
• The response speed become faster. You will feel better and faster when use equivalent ESC.
• New structure and new aluminum material for the motor main body largely decreased weight and brings more pushing force.
• On the assembly of motor shaft, we disposed set screw lock structure for less vibration. Besides, we initiative adopt the technology of main axis throughout the screw thread shaft sleeve, which largely increased the contact area between steel axis and top cover screw thread shaft sleeve and ensured the concentricity of rotator, enriched the strength of paddle and propeller shaft, and the motor is more strong against punching. The larger contact area of the axis perfectly solved the antiskid issue without set screw.
• We hace conducted plenty of Bionic Imitation Experiments for the motors, trying our best to increase the pressure difference of the back cover after motor rotation, make it increase the air floating speed via itself while working, this can low down the heating of the motor and improve the efficiency.

Specifications:

• KV: 2650KV
• No.of Cells(Lipo): 2-4S
• Configuration: 12N14P
• Stator Diameter: 22mm
• Stator Length: 7mm
• Shaft Diameter: 5mm
• Motor Dimension (Dia.*Len): Φ 27.9 × 31.1mm
• Weight(g): 30.5g (Excluding Cable)
• Recommend Propeller: 5"
• Recommend ESC: 30-50A

Package Content:

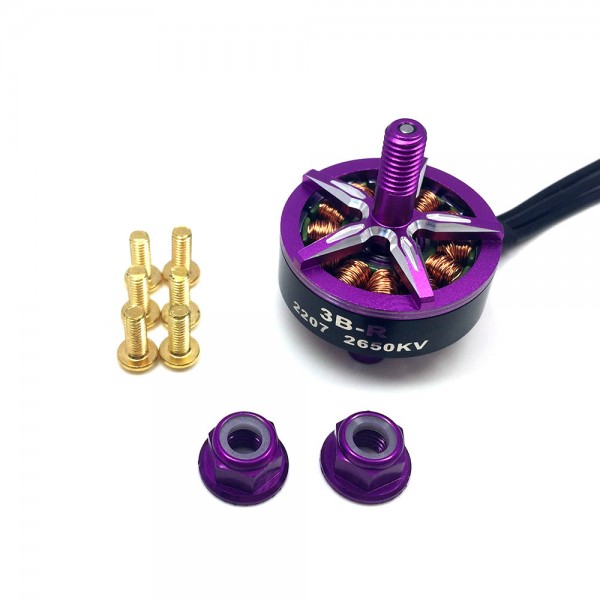

• 1 x 3B-R Motor
• 2 x Aluminium Nut
• 8 x M3*6mm Round head hex socket screw
