Description:

• With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC5V output.
• Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v.
• Imput current: 0.0273A(AC110V) 0.014A(AC220V).
• Input Inrush Current: 20A.
• Output voltage: DC 5V (+ / - 0.2 V).
• Output current 700 mA.
• Power 3.5 W.
• Operating temperature -20~60℃.
• Relative humidity 40-90%RH.
• Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV.
• Output power:0-4W(DC current).
• Output efficiency: 80%.
• Switch machine overshoot: MAX 10%.
• Output voltage rise time: MAX 100MS.
• Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery.
• Output over power protection:YES ,recovery:Lock, restart after recovery.
• Short-circuit protection: YES, automatic recovery after problem solved.
• Overcurrent protection: YES,recovery:Lock, restart after recovery.
• Temperature protection: YES,recovery:Lock, restart after recovery.
• Dimension: 3 x 2 x1.8cm.

Package Content:

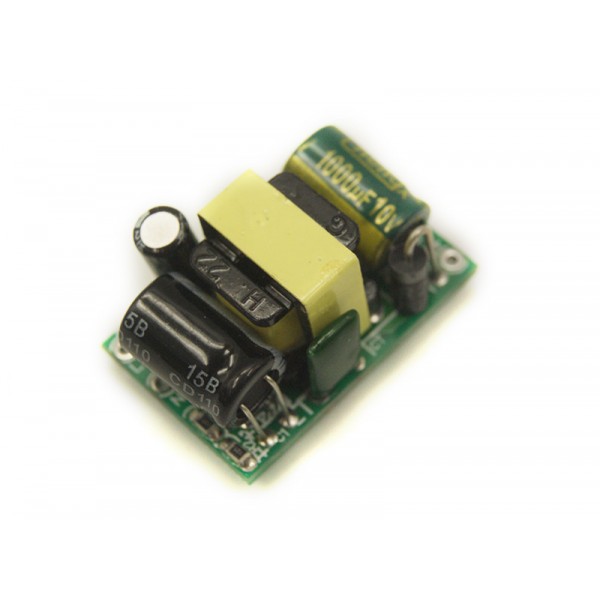

• 1 x AC-DC 5V 700mA 3.5W Power Supply Buck Converter Step Down Module for Arduino
