Description:

• Use PIC16f628a microcontrollers
• Does not need batteries - powered from the ignition
• Standard FUTABA plug (Black-Negative Red-Positive and White-Signal)
• Uses high-brightness LED digital tube.
• Input voltage range:4.8V-12.0V
• Current consumption 25mA-60mA
• Mini tachometer indicates up to 30000 rpm
• Actual RPM= Display Digital *10
• Dimensions: 41mm L x 17mm W x 12mm H
• Display Size: 30mm L x 15mm H
• Weight:8.5g (0.3oz)

Package Content:

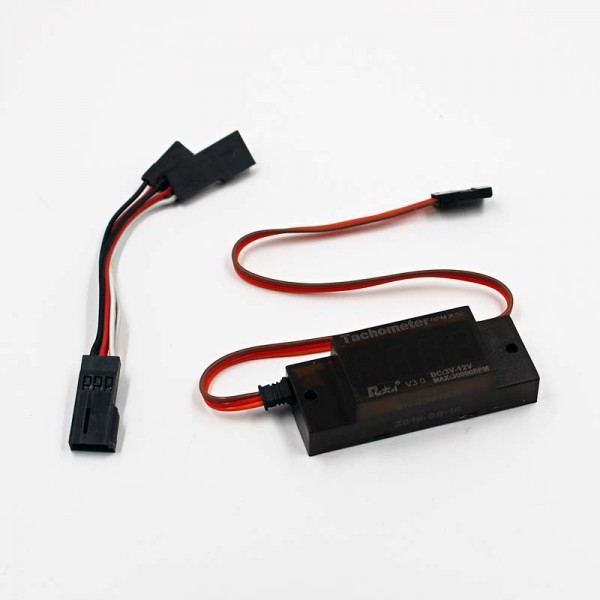

1 x Mini Tachometer

1 x Y-Harness wire
