Description:

• Charge module: Linear charging
• Current: 1A adjustable
• Charge precision: 1.5%
• Input voltage: 4.1-4.2V
• Full charge voltage: 4.2V
• Input interface: Mini USB
• Work temperature: -10℃ to +85℃
• Inversed polarity: NO
• Size: 25 x 19 x 10mm

Note:

• Amp meter can only be connected to 5v input end of the module
• It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.
• The connection wire should not be too thick.
• Make sure the connect point is good.
• If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. This is a protection function, automatic reduction of the charging current to avoid amage to chip.
• NO reverse polarity

Package Content:

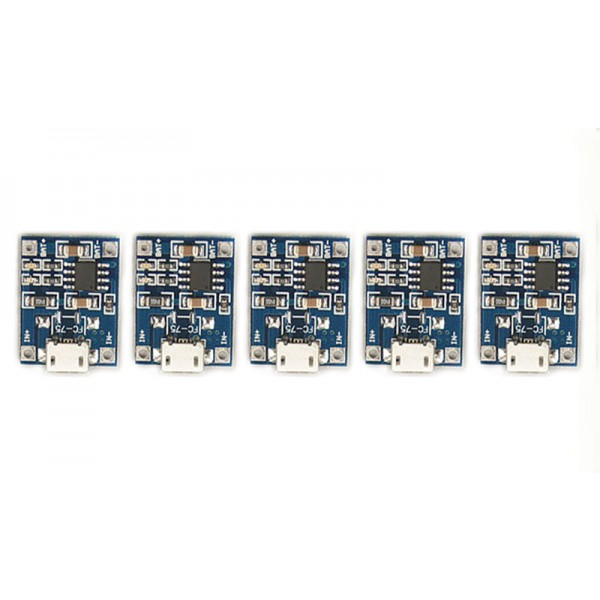

• 5pcs of TP4056 5V Micro USB 1A Lithium Battery Charging Board Charger Module
