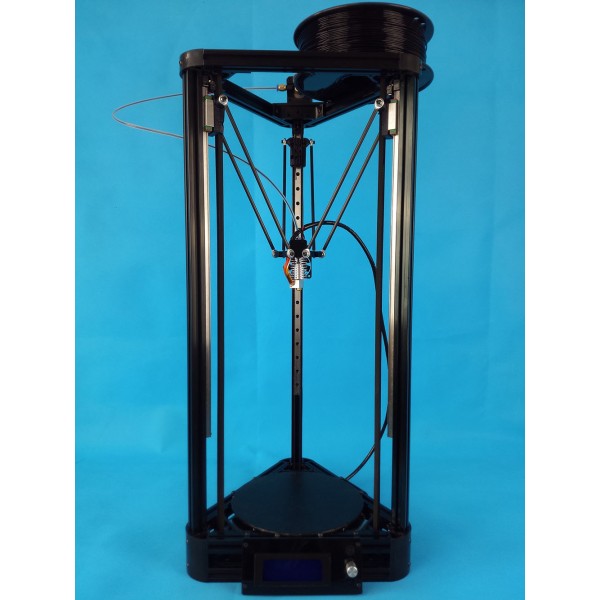

This is the linear rail guide Kossel Delta RepRap 3D Printer.
The linear rail guide Kossel offers the highest accuracy and durability compared to standard pulley design.
This kit is partially pre-assembled, so only minimal assembly is required.
Also included in the package is one roll of 1kg white PLA filament.
The pictures below show the pre-assembled parts, including the delta, the extruder assembly, and the feeder assembly. Now you have a much simpler task of final assembly compared to the kit.
Specifications:
- Body size: Width 30cm Height 68cm
- Color of the printer: black
- Weight: about 8 kg
- Print Area: 180mm (diameter) x 350mm (height)
- Recommended temperature: 200 degrees
- Printing layer thickness: 0.05-0.4mm
- Printing speed: 20-100mm/s
- Print accuracy: 0.005mm
- Connection: USB/SD card
- LCD screen: 20 x 4 character
- Control board: mega2560
- Power: DC 12V/60W
- Material type: 1.75mm (PLA, ABS, nylon)
Features:
The specially designed auto-leveling extruder with cooling fan allow the filament to be cooled down instantly after ejection. This avoids the deformation of the filament and makes better quality results when printing curved or sloped shapes.
User friendly control board has different shapes of plugs to ensure the user does not connect wires incorrectly. The plugs are of 4pin, 3pin, 2pin and different colors. DRV8825 motor controller allow more precise control.
Additional Information
| SKU | VHB-AC-5470 |
|---|
