Details
Specifications:
- Compatibility: X6I, DX7, DX8, DSX7, DSX9, DSX11
- Preset fail-safe system
- Modulation: DSM2® compatible
- Voltage Range: 3.6V~10V
- Dimensions: 29 x 16 x 7mm
- Weight: 3 g

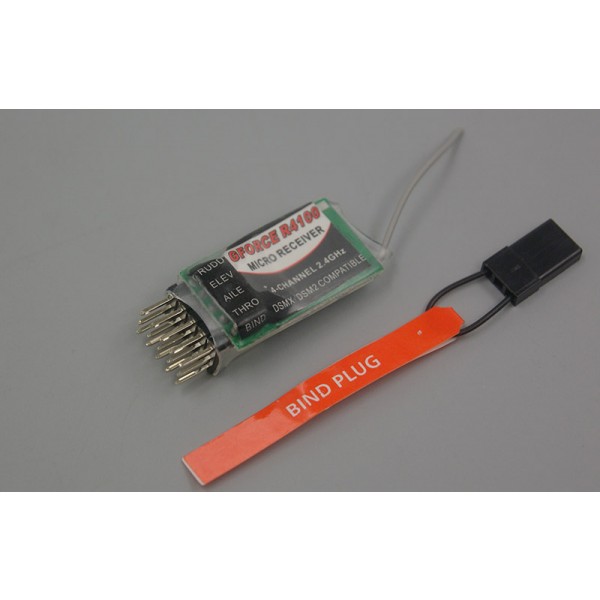

Binding Procedure:
1. Put the binding harness into the Channel marked BIND. Next apply power to the receiver. Receiver's LED should illuminate.
2. To set fail-safe throttle and control surface positions, (minimum throttle and all control surfaces set to neutral is suggested). Press and hold the bind button of transmitter (LED will illuminate), Turn on the transmitter.
3. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the LED of receiver will illuminate solid. All fail-safes should be programed correctly now.
4. Remove binding harness from the BIND channel. Restart the receiver by cycling it power off and turn on. All channels should function properly now. You may test fail-safe by holding sticks in corner, cycle transmitter on and off. Surfaces and throttle should return to your preset fail-safe positions.
Additional Information
| SKU | VHB-RC-3434 |
|---|
Customer Reviews
- The best 4ch receiver Review by Marlon B.
-
I can't get over how small they've gotten and still they accept the standard servo connectors. The range is well over a mile, but who can see that far? At this price of less then ten bucks, who can beat it? (Posted on 5/10/2016)Value Overall Quality - Smallest sized clone receiver Review by Mark B.
-
I've used clone receivers almost exclusively for parkflyer-sized aircraft, and this is by far the smallest that uses standard servo connectors. When size and weight requirements call for small and light, this receiver answers the call. (Posted on 4/17/2016)Quality Value Overall - Great for the price Review by Matt
-
I love these little receivers. They seem to work just fine for my uses and are far less expensive than name brand. (Posted on 7/1/2015)Quality Value Overall - Great little Rx for the price Review by Gary
-
I bought 4 of these put 2 in tower hobbies F6F Hellcat and F4U Corsair 1 ina HK Das Ugly Stick and then 1 in an AXN cloud floater. Range tersted all with my DX8 I can fly all to a distance where the plane is so small you lose orientation can't beet them for the money.Quality Value Overall
(Posted on 3/29/2015) - Good park flyer receiver Review by Randy
-
Very good receiver for the money, Bind rite up with my JR TX and work great, will buy more in the future. (Posted on 1/8/2015)Overall Quality Value - Great product Review by Matt
-
I had no problem hooking up this receiver and binding to my dx6i. (Posted on 9/18/2014)Value Overall Quality - Full range 4CH RX can not beat this deal. Review by Felix
-
Great little full range RX I put this in a few planes and all performed as advertised. (Posted on 7/23/2014)Value Overall Quality
