Details
Features:
- New design with imported NMB bearing
- N52 magnet and 0.2mm lamination
- Powerful with 1.1kg thrust to work with BN5045 Prop
- Hollow shaft with screw to fix the shaft
- Special design for the FPV racer champions.
Specifications:
- KV: 2300
- Configuration: NP
- Stator Diameter: 22.0mm
- Stator Length: 5.0mm
- Shaft Diameter: 3.0mm
- Motor Dimensions(Diameter x Length): 27.7mm x 19.0mm
- Weight (g): 30g
- No.of Cells (LiPO): 3-5S
- Max Continuous current(A): 26.8A
- Max Continuous Power(W): 428.8W

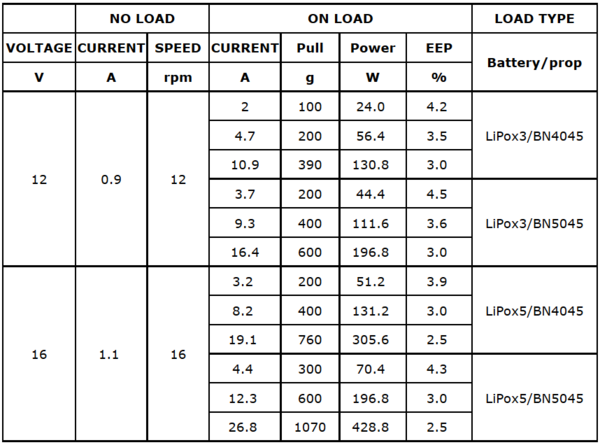

More test data from McFly: http://www.miniquadtestbench.com/dys-se2205-2300kv.html
Here is the test video: https://www.youtube.com/watch?v=Fv740pLlQq8&feature=youtu.be
Additional Information
| SKU | DYS-MT-5490 |
|---|---|
| Motor Weight (g) | 30 |
| KV | 2300 |
| Estimated Output (watt) | 429 |
| Motor Type | Out-Runner |
| Motor Class | No |
| Motor Usage | Multi-Rotor |
