Details

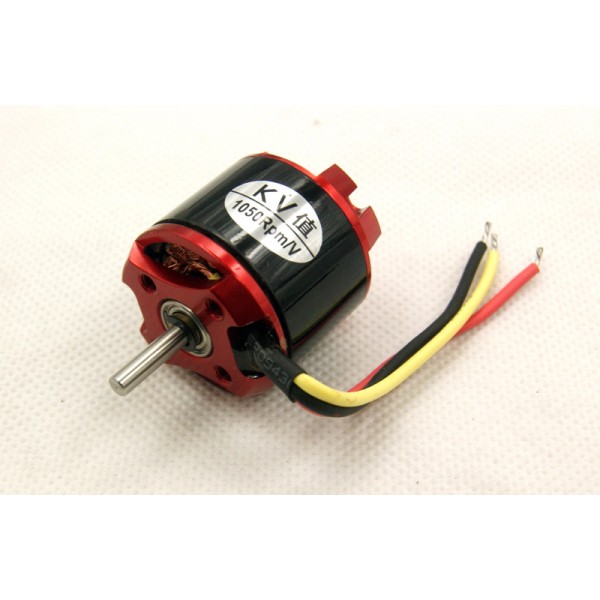

The E400 (28-30) brushless out-runner motor is equivalent to E-Flite Park 400 / AXI 2212. It is capable of producing up to 2 lb of thrust and generate about 200W of power.
Specifications:
- KV: 1050.
- Weight: 1.9oz (54g) for motor only, not including mounting accessories.
- Motor Diameter: Approx. 28mm
- Shaft Diameter: 3.175 mm
- Connector: 3.5mm bullet connector
- Max Efficiency: Approx. 15A
- Max Load: Approx. 18A
Recommended Setup:
- 18A or 30A brushless motor ESC
- 2-3S LiPO and at least 1300mAh.
- Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
With 2S LiPO: 10x6, 10x8 Slow Flyer, 11x4.7 Slow Flyer
With 3S LiPO: 9x4.5, 9x4.7 Slow Flyer - The above prop selections are recommended for sports flying at open throttle. You may try using larger props if you do not fly at constant open throttle.
Motor Dimensions:
Included Accessories:
This motor includes prop adapter and radial mount shown below. 3.5mm bullet connectors need to purchase separately(SKU: AMS-AC-1476).
Mounting Options:
The included accessories allow you to mount the motor in front of the firewall. Shown below is the motor with radial mount installed on the back and prop adapter installed on the front, ready to be installed in front of the firewall.
If you would like to mount it behind the firewall, you will need to purchase the 3.175mm Collet Adapter.
Additional Information
| SKU | XYH-MT-0162 |
|---|---|
| Motor Weight (g) | 54 |
| KV | 1050 |
| Estimated Output (watt) | 255 |
| Motor Type | Out-Runner |
| Motor Class | Park-400 |
| Motor Usage | Airplane |
Customer Reviews
- They run good on my quad. Review by Dale
-
I got these for my HT-FPV quad. On 3s with 10" 4.5 props I have my throttle stick almost half way with plenty of power to spare. They also run cool. Want to get another one for a flighg-test plane. (Posted on 4/11/2014)Quality Value Overall
