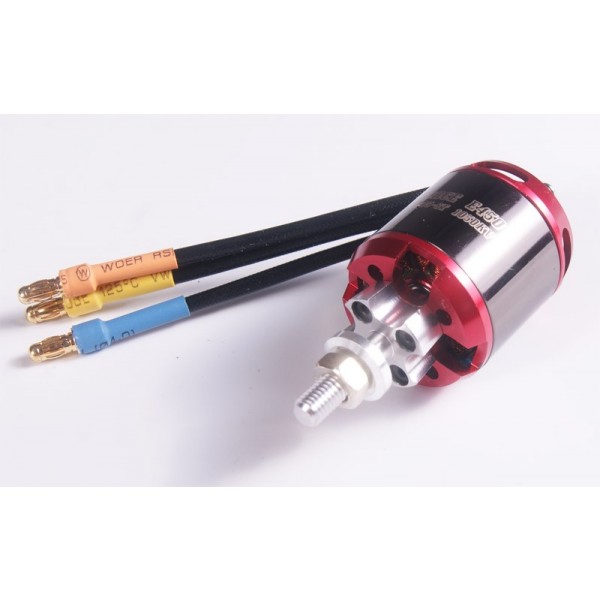

GForce E450 Brushless Outrunner Motor (LC2835/7T 1160KV)

More Views

GForce E450 Brushless Outrunner Motor (LC2835/7T 1160KV)

SKU: LEO-MT-4592

Availability: Out of stock

Regular Price: $32.90

Special Price $22.99

Details

GForce LC Series motors are made by Leopard and represent the highest standard for quality and performance. You will notice higher build quality, longer run-time, and higher power output than other motors of similar specs.

Specifications:

  • Model: LC2835/8T
  • KV: 1160
  • Resistance: 0.0611
  • No-Load Current(7.4V): 0.8A
  • Max Current: 28 A
  • Load Current: 24 A
  • Connector: 3.5mm bullet connector
  • Length of Extend Shaft: 12mm
  • Shat Diameter: 4mm
  • Weight: 68g


Prop  Voltage(V)  Current(A)  Pull(g)  Power(w)
 1047  8.4  17  980  143
 11.1  23  1400  255
 12.6  25   1580   315
 1147  7.4  18  970  133
 8.4  21.5  1170  181
 11.1  29.5  1600  327




Additional Information

SKU LEO-MT-4592
Motor Weight (g) 68
KV 1160
Estimated Output (watt) No
Motor Type Out-Runner
Motor Class Park-450
Motor Usage Airplane

Customer Reviews

Awesome motor, smooth running, lots of power Review by Jeffrey
Overall
Quality
Value
I put this on an Eagle Prime 10x4 prop 3S 2700 Mah pack with a 20 amp esc. I kept it at pretty much full throttle for the entire 7 min flight and no electronics were hot, battery just a bit warm. Excellence speed and power for the whole flight. Will be getting another for an Edge 450, just gunna do a 30 amp ESC this time. Motor is a great value no issues, very smooth lots of power. (Posted on 9/29/2015)
Potent 450. Review by Robert
Value
Overall
Quality
This 450 is a powerhouse for sure,running a 10-6 gws with a 40a HW ESC, high timing and a full charged 2200mah 3s 60c battery turns 10,000 rpm@28amps and I run it full throttle in flight and it hasn't burned down but be carefull when ground testing.A 10-5 no worries at all.I swear this motor out does my 480 in all catagories,you would need a similar 480 or more to out do this MTR.The kV rating is 1160 but it behaves like a 1250kv.Also I'm going 10mins with it installed in a free wing spacewalker/runner& 2.2amp 3s.I wish I knew the wattage specs for the motor but I've gone over340w and motor isn't smoked or burning up after landing,can touch it.Plainly put this is a super 450 for conventional aircraft or 3D,I certainly am getting another for my extra330 3D.

(Posted on 8/20/2015)
