Note: the default AC voltage input is 220V. some modifications are required to support 110V input. first open the blue control box, find the power supply, you need to flip the switch to "110V" position, second, find the transformer, you need to change the wiring as shown.

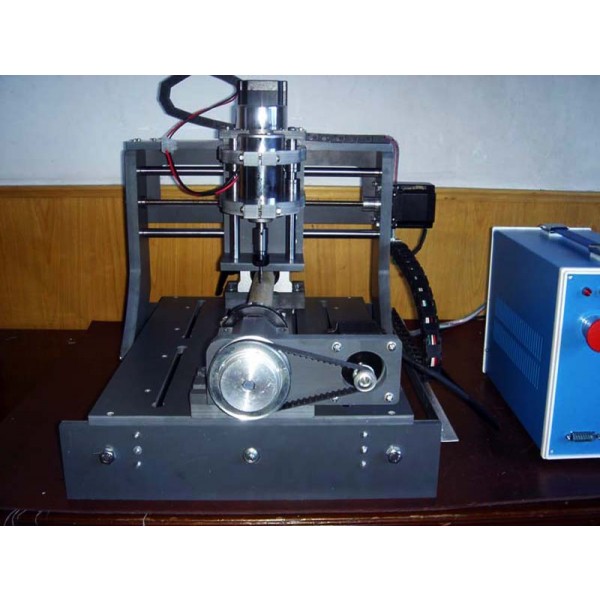

This 2030 CNC machine is constructed of PVC board, mainly used for woodworking.

the fourth axis (A-axis) in installed in this kit, it greatly expands the boundary of the creative working.

Specifications

• Effective Travel: 200 x 300 x 75mm
• 42 stepper motor (x, y, z axis)
• 12mm slide shaft (x z axis)
• 16mm slide shaft (y axis)
• M8 screw shaft
• Control software NOT included. Most popular control software available is MACH 3.

Spindle Motor:

• max working voltage: 48V
• max rpm: 11000r/min
• max power: 300w
• 3.175mm ER11 Collet

4th axis (A axis)

• 3 jaw chuck
• can holding up to 47mm x 235mm (D x L) item
• 57 stepper motor
• 3A drive current
• 1:4 drive ratio
