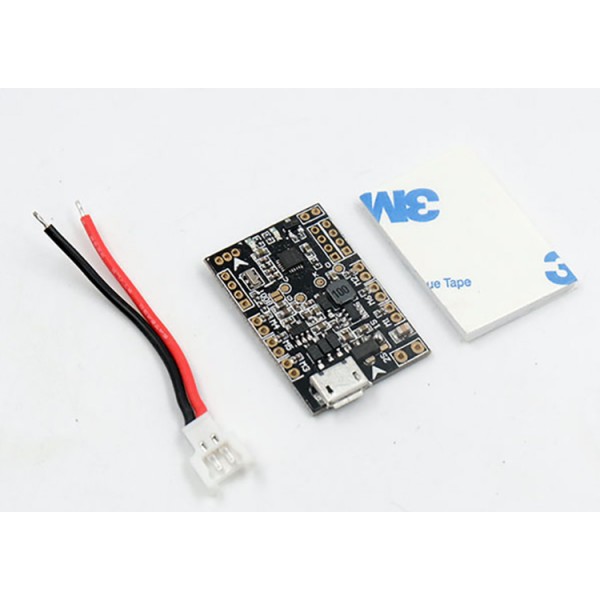

F3 EVO V2 Brushed 3g Flight Controller (Not for Brushless Motors)

Be the first to review this product

SKU: VHB-AC-5596

Availability: Out of stock

Regular Price: $12.50

Special Price $11.28

Details

Description:

  • V2.0 F3 EVO BRUSHED brushed flight controller
  • Supports up to 6-axis multicopters.
  • The working current of each axis can be 10A or higher.
  • Upgraded voltage boost and reduction module provides 5V output and stable 500mAh current output through UART1 or UART 2, satisfying the needs of small power devices such as 25mW 2-in-1 camera and transmitter.
  • With LED_STRIP function, it is compatible with WS2812 colorful turning light and brake light.
  • Support 1S (4.2V) and 2S (8.4V) power supply, 2S power can bring a more violent flying experience.
  • Independent design of the circuit structure, come with pressure reduction technology, whether it is 1S or 2S power input, UART1/2 output 5V, UART3 output 3.3V
  • Use STM32F303CCT6 + MPU6500, advanced hardware platform F3 for higher flight stability
  • Large current NMOS transistors, operating current can reach 10A or higher
  • Support PPM, SBUS, DSM receiver input signal
  • Battery voltage detection and buzzer interface
  • Compatible with almost all hollow cup motors, including 1020 coreless motor
  •  Preloaded with Betaflight.

Specifications:

  • Supported Power Supply: 1S (4.2V), 2S (8.4V)
  • UART1/2 Output: 5V
  • UART3 Output: 3.3V
  • Supported Receiver Input Signal: PPM, SBUS, DSM
  • Thickness: 1.2mm
  • Dimensions: (0.87 x 1.28 x 0.47)" / (2.2 x 3.25 x 1.2)cm (L x W x H)
  • Weight: 0.11oz / 3g
