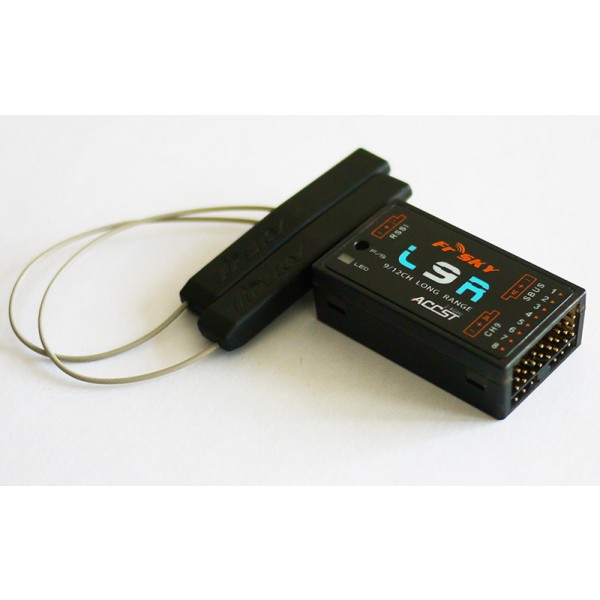

Specifications:

• Dimension: 46.25x26.6x14.2mm (L x W x H)
• Weight: 19g
• Antenna: PCB Antenna
• RSSI output: Analog RSSI output (0-3.3V)
• Operating Voltage Range: 4.0-10V
• Operating Current: 100mA@5V
• Operating Range: approx. 2 times that of X-series receivers

Features:

• Longer operating range: 2 times of the operating range for X-series receiver
• More number of channels: 1~9ch from conventional channel outputs, 1~12ch from SBUS port
• With RSSI output
• This is not a telemetry receiver.

Compatibility:

• FrSky X-series Module (XJT) etc in LR12 mode (Switch 1 is OFF, Switch 2 is ON)
• FrSky Taranis X9D etc. in LR12 mode
• L9R receiver does not work with FrSky V8, D8, and D16 Mode.

IMPORTANT:

L9R has a bind protocol that differs from the X series - PLUS failsafe is set to last signal by default, so the user must ensure to set the failsafe to work as preferred. Failsafe cannot be set from the TX, so the manual should be consulted for the relevant information.
