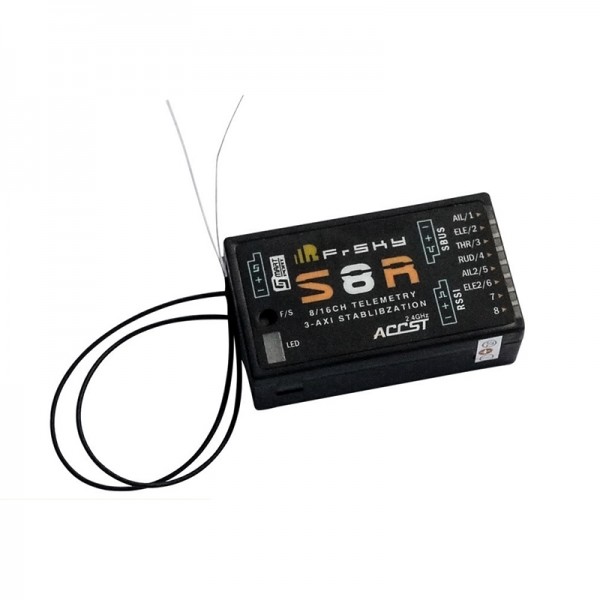

The S8R is a FrSky X-series receiver with built in 3-axis stabilization. For conventional Fixed Wing and Glider Models it will support stabilization, automatic level, hover and Knife-edge flight modes, for Delta Wings or flying wings and V-tail models it supports stabilization and automatic level flight modes. You can edit the type of model and manipulate all these features via the S8R.Config or S8R.lua. The S8R can also be used as a standard 8 channel X series receiver if it is required.

Tip: Use the S8R with 3-axis stabilization as a slave receiver with the RB-10 to give you that extra peace of mind by buying you precious time to bring your model home.

Features:

• Built-in RSSI PWM output(0-3.3V)
• Built-in battery voltage detection
• Built-in 3-axis gyroscope and 3-axis accelerometer sensor module
• Smart Port enabled
• SBUS Port enabled

Descriptions:

• Operating Range: Full range
• Operating Voltage Range: 4.0-10V
• Operating Current: 120mA 5V
• Dimensions: 1.8 x 1.1 x 0.6in
• Weight: 14g / 0.5oz
• Number of Channels: 16CH (1-8ch from conventional channel output, 1-16ch from SBUS port)
• RSSI (Y/N): With RSSI PWM output on board: PWM voltage output (0~3.3V), 100HZ, 1500±500us
• Gyroscope Measurement Range ±2000dps
• Accelerometer Measurement Range: ±4g
• Firmware Upgradeable
• Compability: Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode, S8R-EU only works with Frsky Horus X12S and Taranis X9D Plus/X9E/X7/XJT in D16-EU mode.
