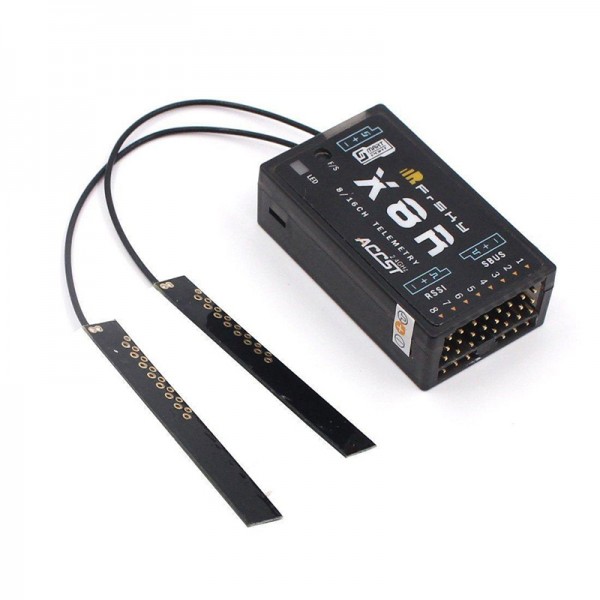

The X8R is in a smaller package then previous 8 channel receivers, but has so much more capability. The new SmartPort supports the new hub-less sensors as well as the older hub analog sensors.The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels. Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first and 9-16 on the second.The X8 protocol is also backward compatible! In D8 mode it work with the DHT, DJT, DFT and DHT-U transmitter modules.

Specifications:

• Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode, FrSky Taranis X9D/XJT in D8 mode, FrSky Taranis X9D/XJT in D16 mode
• Firmware Upgradable: Y
• Weight: 16.6g
• Case: 46.25 x 26.6 x 14.2mm (L x W x H)
• Operating Range: full range (>1.5km)
• Operating Voltage Range: 4.0~10V
• Operating Current: 100mA@5V
• Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port Or combine two X8R to become a 16 channels receiver)
