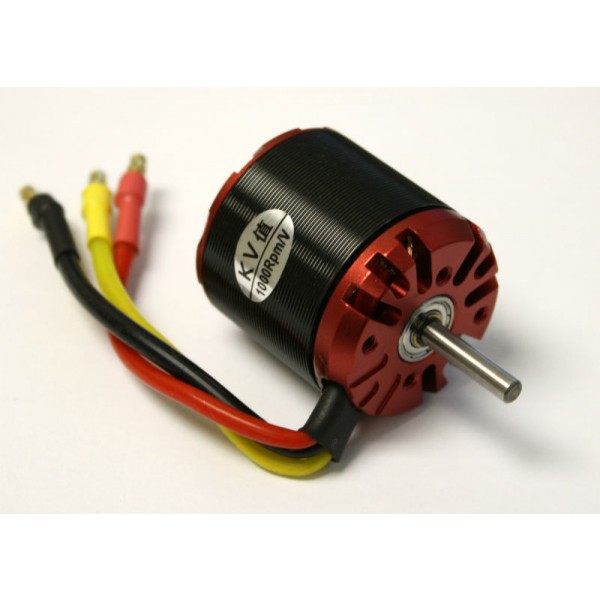

The G15 (35-42) brushless out-runner motor can replace a .25 - .32 two stroke nitro engines and is equivalent to E-Flite Power 15 / AXI 2820. It is capable of producing up to 4.5 lb of thrust and generate about 550W of power.

Prop adapter and radial mount accessories are included.

Specifications:

• KV: 1100.
• Weight: 4.8oz (135g) for motor only, not including mounting accessories.
• Connector: 3.5mm bullet connector
• Motor Diameter: Approx. 35mm
• Shaft diameter: 4 mm
• Max efficiency: Approx. 32A
• Max Load: Approx. 40A

Recommended Setup:

• 40A-60A  brushless motor ESC
• 3S LiPO and at least 2650mAh.
• Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
  With 3S LiPO: 12x6, 11x5.5
• The above prop selections are recommended for sports flying at open throttle. You may try using larger props if you do not fly at constant open throttle.

Motor Dimensions:

Included Accessories:

This motor includes prop adapter and radial mount shown below. 3.5mm bullet connectors need to purchase separately(SKU: AMS-AC-1476).

Mounting Options:

The included accessories allow you to mount the motor in front of the firewall. Shown below is the motor with radial mount installed on the back and prop adapter installed on the front, ready to be installed in front of the firewall.

If you would like to mount it behind the firewall, you will need to purchase the 4mm Collet Adapter.
