Details

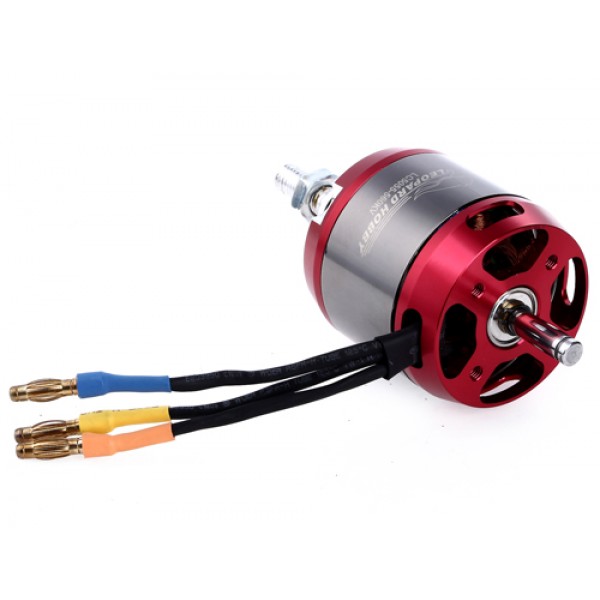

GForce LC Series motors are made by Leopard and represent the highest standard for quality and performance. You will notice higher build quality, longer run-time, and higher power output than other motors of similar specs.
Specifications:
- Model: LC5055/8T
- KV: 560
- Resistance: 0.0272
- No-Load Current(7.4V): 1.8A
- Max Current: 68A
- Load Current: 58A
- Connector: 4mm bullet connector
- Length of Extend Shaft: 20mm
- Shat Diameter: 6mm
- Weight: 270g
| Prop | Voltage(V) | Current(A) | Pull(g) | Power(w) |
| 1410 | 11.1 | 16.5 | 1400 | 183 |
| 12.6 | 20 | 1800 | 252 | |
| 14.8 | 26 | 2200 | 385 | |
| 16.8 | 33 | 2800 | 554 | |
| 18.5 | 38 | 3250 | 703 | |
| 21 | 46 | 4000 | 966 | |
| 22.5 | 51 | 4350 | 1132 | |
| 1580 | 11.1 | 19 | 1500 | 211 |
| 12.6 | 23 | 1800 | 290 | |
| 14.8 | 30 | 2400 | 444 | |
| 16.8 | 36 | 2950 | 605 | |
| 18.5 | 43 | 3600 | 796 | |
| 21 | 51 | 4300 | 1071 |
Additional Information
| SKU | LEO-MT-3065 |
|---|---|
| Motor Weight (g) | 270 |
| KV | 530 |
| Estimated Output (watt) | No |
| Motor Type | Out-Runner |
| Motor Class | Power-46 |
| Motor Usage | Airplane |
