Details

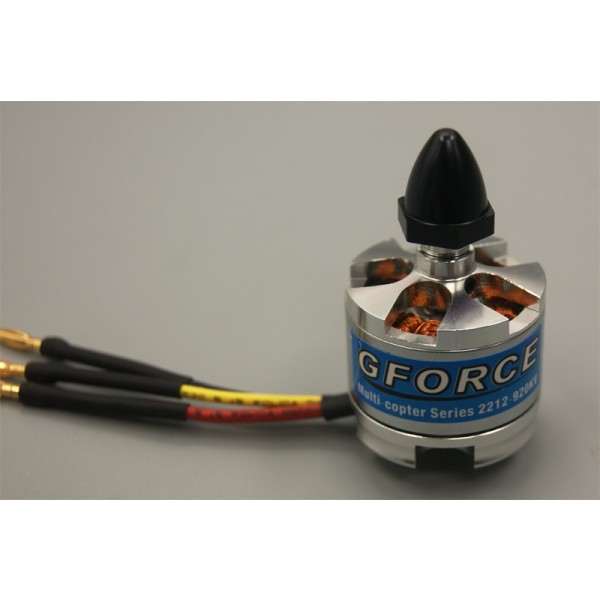

Suitable for for DJI Phantom Series, F330, F450, F550 or equivalent size multicopters.
Reverse threaded shaft. Perfect replacement for DJI 2212 motor.
Specifications:
- Diameter:28mm
- Length: 24mm
- Shaft: 5mm
- Weight: 47.8g
- Input Voltage: 2-4S LiPO
- No-load Current: 0.5A
- Bottom Mounting Holes: 16 x 19 mm
Test data on 3S LiPO
| Voltage | Propeller | Throttle | Current | Watts | Thrust | PRM | Efficiency(G/W) |
|---|---|---|---|---|---|---|---|
| 11.1V | APC 9 x 6SF | 85% | 11.2 | 115 | 470 | 6150 | 4.09 |
| 11.1V | APC 10 x 4.7 | 85% | 11.3 | 120 | 680 | 6100 | 5.67 |
| 11.1V | GP 10 x 4.5 | 90% | 10.5 | 116 | 685 | 5763 | 5.91 |
Additional Information
| SKU | VHB-MT-3714 |
|---|---|
| Motor Weight (g) | 48 |
| KV | 920 |
| Estimated Output (watt) | No |
| Motor Type | Out-Runner |
| Motor Class | Park-400 |
| Motor Usage | Multi-Rotor |
Customer Reviews
- Great motor for anybody building on a budget Review by Tim
-
Great motor, plenty of power using a 3S setup and 1045 propellers. they run cool and provide good battery life. (Posted on 3/14/2015)Quality Value Overall
