Details

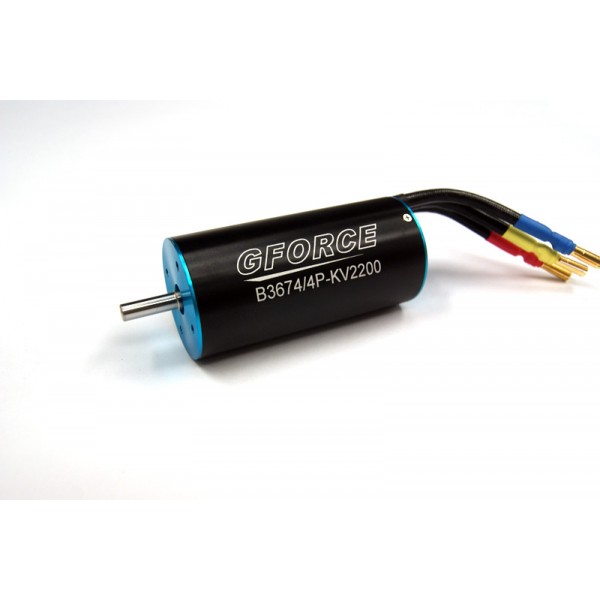

Sensorless inrunner brushless motor for 1/8 scale vehicles. Suitable for nitro to electric conversion or upgrade of stock brushed motors. Compact 36mm diameter allows installation flexibility. Long 74mm can provides extra torque. Featuring 4-pole rotor for improved performance.
Weight: 315g
| KV | Poles | Sensor | Dimensions (mm) | Shaft Diameter(mm) | Max Amp | Voltage | Max Power | No-load Current | Resistance | Connector |
| 2200 | 4 | Sensor-less | 36 x 74 | 5.0 | 90A | Max. 27V | 2400W | 2.7A | 0.0066 | 4mm Bullet |
Motor Dimensions:
Additional Information
| SKU | SAT-MT-3052 |
|---|---|
| Motor Weight (g) | 315 |
| KV | 2200 |
| Estimated Output (watt) | No |
| Motor Type | In-Runner |
| Motor Class | B540 (Φ36mm) |
| Motor Usage | Car, Boat (water-cooled) |
Customer Reviews
- excellent 4X4 motor Review by hyper 10sc Ed
-
I have mated this 2200Kv motor to a mamba max pro ESC in my of a hyper 10sc, the motor fit perfectly and is geared in an 18/52 configuration, needles to say this set up screams and is very fast with either a 60c 2 or 3S lipo... I'm very happy with my purchase and I'm thoroughly enjoying it! (Posted on 11/1/2014)Value Overall Quality - chuck norris of cheap motors Review by jim
-
Running this on a slash 4x4 with 24 52 gearing and a 3s. Gets warm after a pack of full throttle abuse. Gobs of power. Blows the stock motor away. Same diameter as the velenion motor.. 540 can? Was expecting mamba monster size but im still extremely happy.Value Overall Quality
Motor is really really smooth paired up with a mamba esc (Posted on 2/28/2014)
