Details

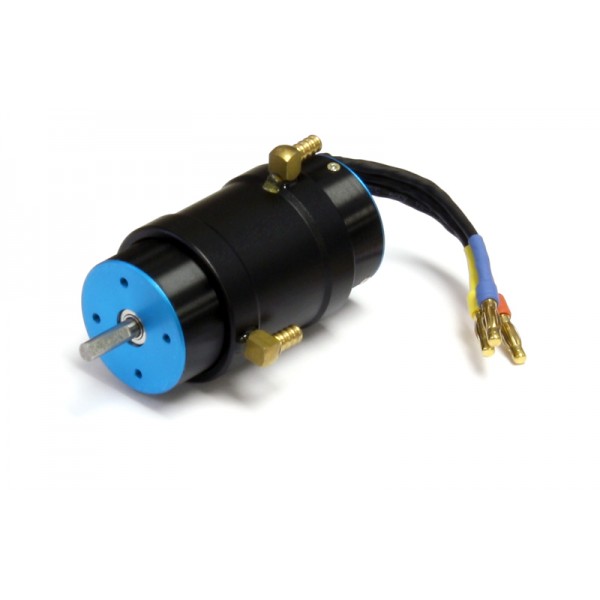

Inrunner brushless motor for RC Boats.
4-pole rotor provides more torque and lower current draw.
Water-jacket provides water-cooling.
| KV | Poles | Sensor | Dimensions (mm) | Shaft Diameter(mm) | Max Amp | Voltage | Max Power | No-load Current | Resistance | Connector |
| 2600 | 4 | Sensor-less | 36 x 74 |
5.0 | 110A | Max. 14.8V/4S | 1600W | 3.1A | 0.006 | 4mm Bullet |
The dimensions of the water jacket:
Additional Information
| SKU | SAT-MT-2764 |
|---|---|
| Motor Weight (g) | 315 |
| KV | 2600 |
| Estimated Output (watt) | No |
| Motor Type | In-Runner |
| Motor Class | B540 (Φ36mm) |
| Motor Usage | Boat (water-cooled) |
