The SKU of the replacement motor shaft: SAT-AC-2611

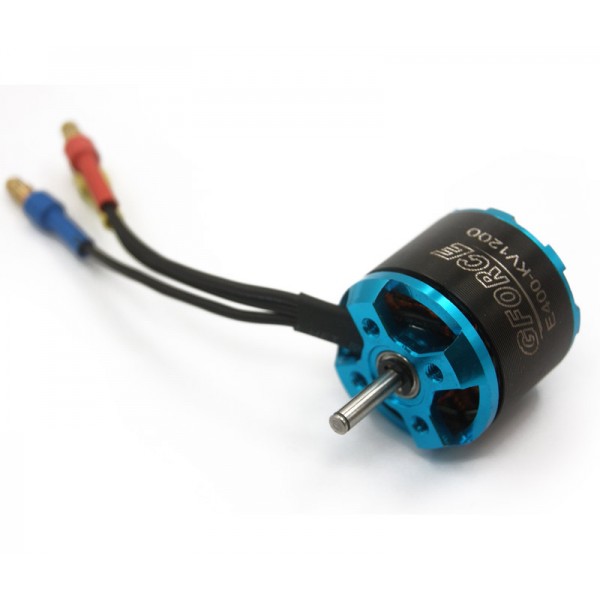

This 400-size brushless outrunner motor provides quiet, efficient power from a small and light-weight package. It's ideal for 3D park flyers about 13.0oz (370g) and aerobatic park flyers about 19.4oz (550g).

Specifications:

• KV: 1200
• Motor Diameter : 28mm
• Weight: 2.0oz (56g)
• Shaft Diameter: 3.17mm
• Connector: 3.5mm bullet connector
• Battery: 3S LiPO
• Max Load: 19A
• Max Efficiency: 14A

Recommended Setup:

• 18A brushless ESC
• 3S LiPo
• Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
• With 3S LiPO: 9 x 4.7, 10 x 5

Motor Dimensions: (in millimeter)

Included Accessories:

This motor includes prop adapter and radial mount shown below. The motor has bullet connectors pre-installed, and includes female bullet connectors for use with your ESC.

Mounting Options:

The included accessories allow you to mount the motor in front of the firewall. The radial mount is installed on the back and the prop adapter is installed on the front.

If you would like to mount it behind the firewall, you will need to purchase the 3.17mm Collet Adapter.
