Details
The SKU of the replacement motor shaft: SAT-AC-2614

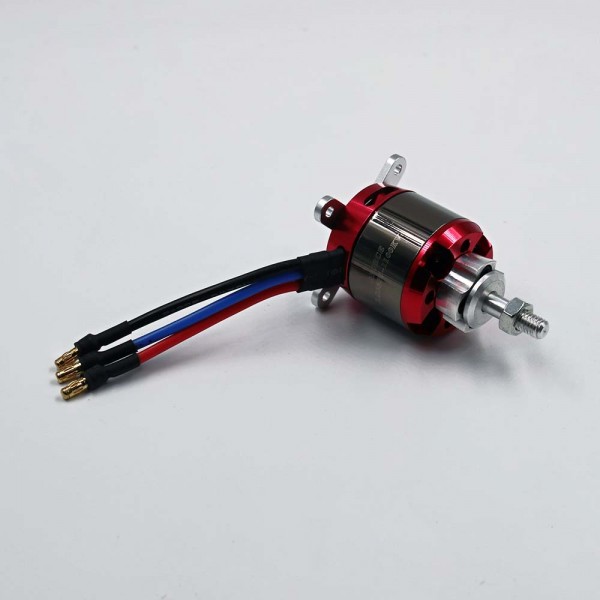

The G10 (35-36) brushless out-runner motor can replace a .10-.15 two stroke nitro engines and is equivalent to E-Flite power 10. It can generate about 415w of power.
Specifications:
- KV: 1100.
- Weight: 3.5oz (100g)
- Motor Diameter: Approx. 35mm
- Connector: 3.5mm bullet connector
- Shaft diameter: 4 mm
- Max efficiency: Approx. 23A
- Max Load: Approx. 37A
Recommended Setup:
- 50A brushless motor ESC
- 2-3S.
- Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
With 2S LiPO: 14 x 6
With 3S LiPO: 10 x 7
Motor Dimensions:
Included Accessories:
This motor includes prop adapter and radial mount shown below. The motor has bullet connectors pre-installed, and includes female bullet connectors for use with your ESC.
Mounting Options:
The included accessories allow you to mount the motor in front of the firewall. The radial mount is installed on the back and the prop adapter is installed on the front.
If you would like to mount it behind the firewall, you will need to purchase the 4mm Collet Adapter.
Additional Information
| SKU | SAT-MT-1884 |
|---|---|
| Motor Weight (g) | 101 |
| KV | 1100 |
| Estimated Output (watt) | No |
| Motor Type | Out-Runner |
| Motor Class | Power-10 |
| Motor Usage | Airplane |
Customer Reviews
- Great value, great power Review by James
-
I purchased this motor for a top flite mini contender I had. It came quickly as usual from value hobby. I teamed the motor with a 9 X 6 prop , a value hobby ESC 30 amp, and 11.1 volt 2200 G-force battery and I now have a great and very fast plane. This motor will pull this plane straight up no problem. Very happy. Love Value Hobby service, value, prices and quality. (Posted on 9/7/2013)Quality Value Overall
