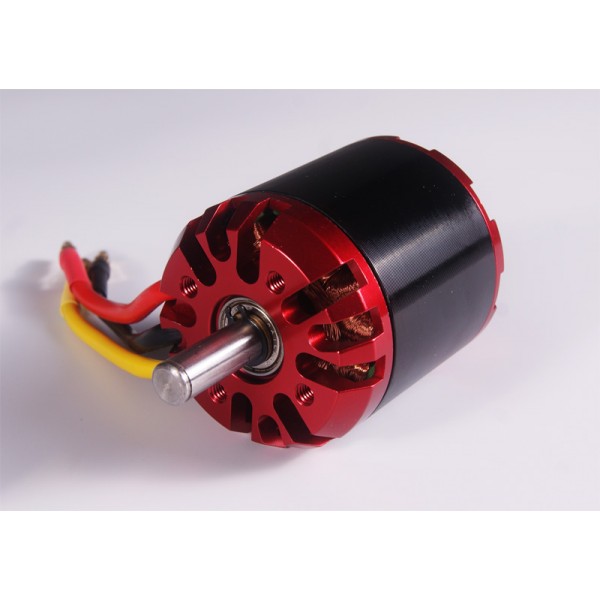

The G60 (50-65) brushless out-runner motor can replace a .60-.75 two stroke nitro engines. It is equivalent to AXI 4130 and E-Flite Power 60. It is capable of producing up to 10lb of thrust and generate about 1200W of power.

Specifications:

• KV: Listed as 410, tested to be approx. 415.
• Weight: 14.6oz (414g) for motor only, not including mounting accessories.
• Motor Diameter: Approx. 50mm
• Shaft diameter: 8mm
• Max efficiency: Approx. 50A
• Max Load: Approx. 60A

Motor Dimensions:

Recommended Setup:

• 80A  Opto brushless motor ESC
• 6-8S LiPO and at least 4000-5000mAh.
• Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
    With 8S LiPO: 16x8, 14x10
  With 6S LiPO: 16x10, 15x10, 14x10

• The above prop selections are recommended for sports flying at open throttle. You may use slightly larger props if you do not fly at constant open throttle.

Included Accessories:

This motor includes prop adapter and radial mount shown below. The motor has  bullet connectors pre-installed, and includes female bullet connectors for use with your ESC.

Mounting Options:

In Front of the Firewall - The included accessories allow you to mount the motor in front of the firewall. Shown below is the motor with radial mount installed on the back and prop adapter installed on the front, ready to be installed in front of the firewall.

Behind the Firewall - If you would like to mount it behind the firewall, you will need to purchase the 8mm Collet Adapter.
