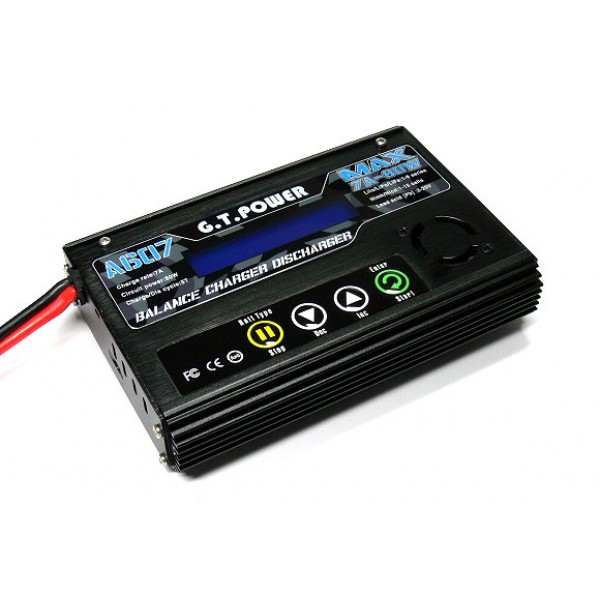

GT Power A607 80W-7A LiPO Charger

Be the first to review this product

SKU: GTP-CH-0340

Availability: Out of stock

Regular Price: $35.99

Special Price $29.99

Details

The GT Power A607 is more powerful than the entry level balancing charger, and can handle up to 6-cells and 7A, at 80W of power. The GT Power A607 charger will handle LiPO/LiFE battery packs up to 6S and NiMH/NiCD up to 15S and show individual cell voltage during charge, which real time charge info throughout the charge cycle.

Power supply not included.

Specifications:

  • Operating Voltage Range: DC 10 - 18VCircuit Power: Max. 80W for charging, Max. 5W for discharging
  • Charge Current Range: 0.1 - 7.0A
  • Discharge Current Range: 0.1 - 1.0A
  • Current drain for balancing Li-po: 300mAh/cell
  • NiCd/NiMH battery cell count: 1 - 15 Cells
  • Lithium Battery Cell Count: 1 - 6 Series
  • Pb Battery Voltage: 2 to 20V
  • Dimensions: 135mm x 100mm x 40mm
  • Packet Includes: Multifuctional Connector

Key Features:

Optimized operating software
When charging or discharging, It has an `AUTO` function that sets the feeding current automatically. Especially for Lithium batteries, it can prevent the over-charging can lead to an explosion by users fault. Every program in the unit is controlled with mutual links and communication for every possible error so it introduces a maximum safety. These can be set at users option.

High-power and high-performance circuit
It employs the circuit that has maximum output power of 80W. As a result it can charge or discharge up to 15 cells of NiCd/NiMH and 6 series of Lithium batteries with maximum current of 7.0A. Furthermore the cooling system is so efficient that can hold such a power without any trouble of running the CUP or the operating program.

Individual voltage balancer for Lithium batteries inside
Ithas an individual-cell-voltage balancer inside. This does not requireany extra balancer separately when charging Lithium batteries(Lilo/LiPO/LiFe) for cell voltage balancing.

Balance individual cells on discharge
Italso can monitor and balance individual cells of the Lithium batterypack during the discharge process. If the voltage of any one cell variesabnormally, the process will be stopped with the error message.

Accept various types of Lithium battery
  Itcan accept three types of Lithium batteries - Lilo, LiPo and LiFe. Theyhave different characteristics by their chemistry. You can select anyone of them that you are going to process before the job. For theirspecifications, refer `Warnings and safety notes` section.

Lithium battery `Fast` and `Storage` mode
  Youcan charge Lithium battery for special purposes. `Fast` charge reducesthe charging time of Lithium battery and `storage` mode controls thefinal voltage of the battery to be suit for long time storage.

Maximum safety
Delta-peaksensitivity: The automatic charge termination program works on theprinciple of the Delta-peak voltage detection. (NiCd/NiMH)

Auto-charge current limit: Whencharging NiCd or NiMH at `AUTO` current mode, you can set the upperlimit of change current to avoid from high current charging. This isvery useful when charging the low impedance and small capacity NiMHbattery in `AUTO` mode.

Capacity limit: The changing capacityalways calculated by multiple of the charging current and time. If thecharging capacity exceeds the limit the process will be terminatedautomatically when you set the maximum value.

Processing time limit: you can also restrain the maximum process time to prevent form any possible defect.

Input power monitor: To protect thecar battery using as input power from being damaged the voltage of italways monitored. If it drops below the lower limit the process will beended automatically.

Automatic cooling fan: The electriccooling fan comes into action automatically only when the internaltemperature of the unit is raised.

Data store / load
Forusers convenience it can store maximum 5 data of different batteries. You can establish the data contains program setting of the battery tocharge or discharge continually. These data can be called out at anytime you need and the process can be executed without program setting.

Cyclic charging / discharging
Perform 1 to 5 cycles of charge>discharge or discharge>charge continually for battery refreshing and balancing.

Additional Information

SKU GTP-CH-0340
Charger Capacity 6S LiPO
Power Supply Not Include Power Supply
Brand GT Power
