1. With VCC, GND, TXD, RXD foot for the bluetooth.
2. With LED indicator light.
3. 3.3V LDO baseboard.
4. Input voltage 3.3 ~ 6V, the input voltage more than 7 V is prohibited.
5. Unpaired current is about 30mA, matched current is about 10mA.
6. Interface level 3.3 V, can be connected directly to a variety of single chip microcomputer (51, AVR, PIC, ARM, MSP430, etc.)
7. 5V microcontroller can also be connected directly, without MAX232 nor through MAX232.
8. Size: Approx. 3.57 x 1.52 cm

Package Content:

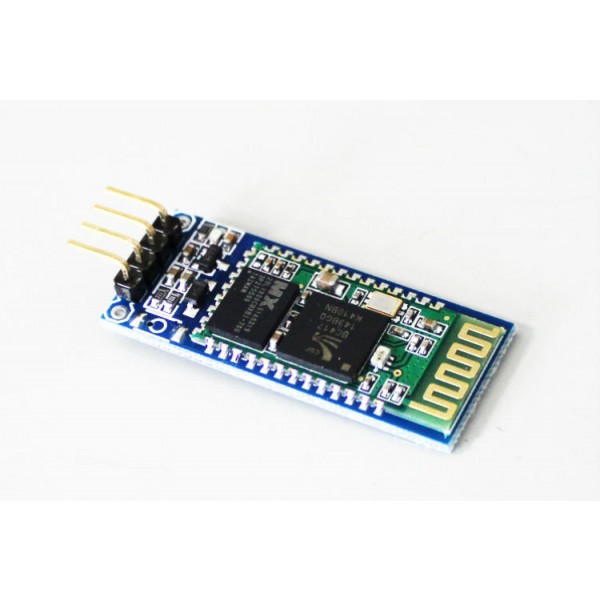

• 1 Pcs * HC-06 Wireless Bluetooth Transceiver
