Details

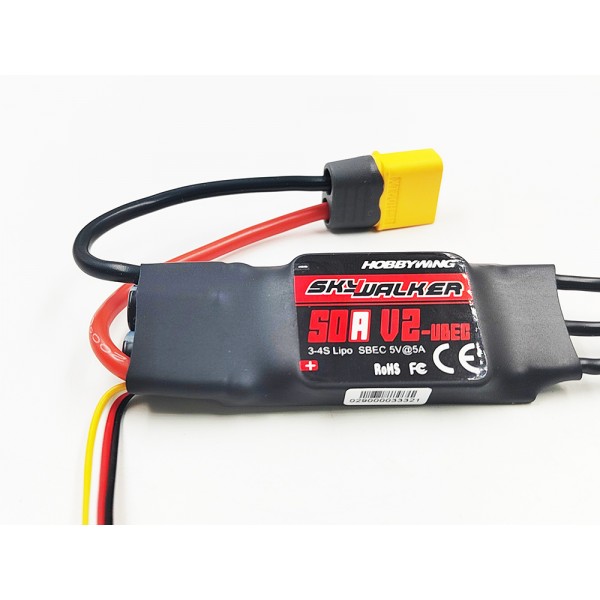

Specification:
- Output: Continuous 50A V2, Burst 65A up to 10 seconds.
- Input Voltage: 2-4S LiPO, 5-12 cells NiMH.
- BEC: 5A / 5V Switch mode BEC.
- Refresh rate of the throttle signal: 50Hz to 432Hz.
- Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. (BLM = BrushLess Motor)
- Connectors: 3.5m bullet connectors and T-Connector pre-soldered.
- Size: 65mm*35mm*14mm.
- Weight: 41.7g.
Features:
- Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
- User programmable.
- Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
- Compatible with LiPO and NiMH battery.
- Timing can be changed to be suitable for different brushless motors.
- Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Additional Information
| SKU | HWG-SC-3537 |
|---|---|
| Output | No |
| Input Voltage | 2-4S LiPO |
| Usage | Airplane/Heli/Multicopter |
| BEC | Built-in Switching BEC |
| ESC Series | Hobbywing SkyWalker |
