Details

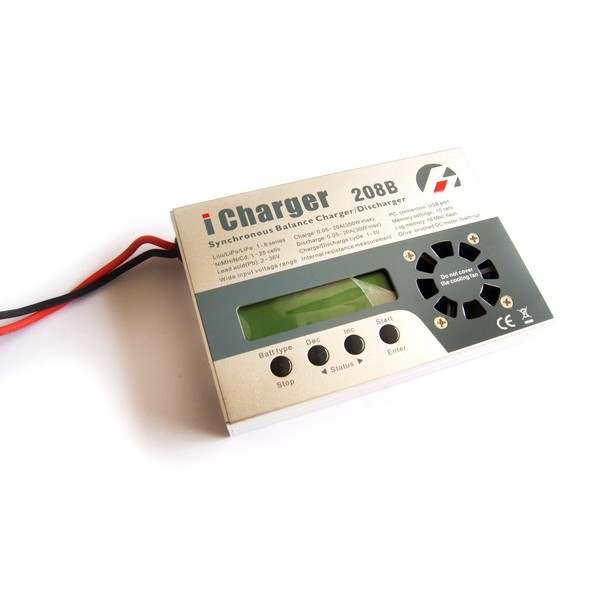

The iCharger 208B is capable of handling up to 350W or 20A charge rates. LiPO, LiFE and A123 compatible as well as able to charge up to 8 cell packs.
The iCharger is famous for its ultra-accurate balancing feature. Each unit is calibrated at the factory prior to shipping!
We are iCharger's Authorized Dealer. Warranty handled in Illinois.
Specifications:
- Input Voltage Range: 4.5 - 32.0V DC
- Charge Current Range: 0.05 - 20.0A
- Discharge Current Range: 0.05 - 20.0A
- Maximum Charge Power Capacity: 350W @ input voltage > 18V
- Maximum Discharge Power Capacity: 30W
- Maximum Extern Discharge Power Capacity: 600W @ 30V/20A
- Current Drain For Balancing: <350mA
- Balance Accuracy: <10mV
- Lithium (LiPo/LiIo/LiFe) Battery Cell Count: 1-8 cell (In non-balance mode, expand LiFe to 10s)
- NiCd/NiMH Battery Cell Count: 1 - 25 cell
- Pb Battery Cell Count: 1-18 cell (2 36V)
- Log Files Storage: 16Mbit (36 hours)
- Battery Setup Memories: 10
- Intelligent Temperature Control: Yes
- PC Connect: USB port
- Weight: 420g
- Dimensions (L X W X D): 143 x 97 x 26mm (5.63 x 3.82 x 1.02in)
Package Content:
- 208B Balance Charger/Discharger
- Software CD with user's manual
- 2 aligator clips
- Banana leads
- One temperature sensor lead
- JST-XH balance board
- Power supply not included
Additional Information
SKU | JNS-CH-0332 |
---|---|
Charger Capacity | 8S LiPO |
Power Supply | Not Include Power Supply |
Brand | iCharger |
