Details

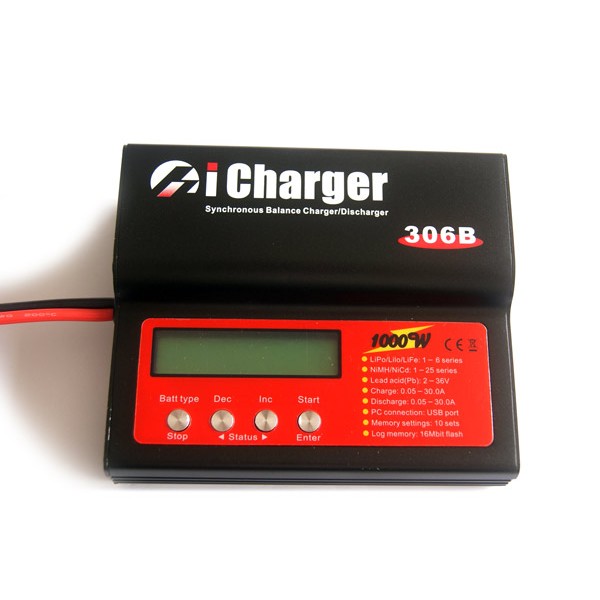

The iCharger 306B is capable of handling up to 1000W or 30A charge rates. LiPO, LiFE and A123 compatible as well as able to charge up to 6 cell packs.
The iCharger is famous for its ultra-accurate balancing feature. Each unit is calibrated at the factory prior to shipping!
We are iCharger's Authorized Dealer. Warranty handled in Illinois.
Specifications:
- Input Voltage Range:4.5~38V DC
- Charge Current Range: 0.05~30A
- Discharge Current Range: 0.05~30A
- Maximum Charge Power Capacity: 1000W @ input voltage > 23V
- Maximum Discharge Power Capacity: 80W
- Maximum Extern Discharge Power Capacity: 1200W @ 30V/40A
- Current Drain For Balancing: <500mA
- Balance Accuracy: <10mV
- Lithium (LiPo/LiIo/LiFe) Battery Cell Count: 1-6 cell (In non-balance mode, expand LiFe to 12s)
- NiCd/NiMH Battery Cell Count: 1 - 25 cell
- Pb Battery Cell Count: 1~18cell (2~36V)
- Log Files Storage: 16Mbit (31 hours)
- Battery Setup Memories: 10
- Intelligent Temperature Control: Yes
- PC Connect: USB port
- Weight: 750g
- Dimensions (L X W X D): 143 x 123 x 46mm (5.63 x 4.84 x 1.81in)
Package Content:
- 306B Balance Charger/Discharger
- Software CD with user's manual
- 2 aligator clips
- Banana leads
- One temperature sensor lead
- Power supply not included
Link to More Details about This Charger
Additional Information
| SKU | JNS-CH-2824 |
|---|---|
| Charger Capacity | 6S LiPO |
| Power Supply | Not Include Power Supply |
| Brand | iCharger |
Customer Reviews
- Great charger Review by Tony
-
I agonized over slow(3A limit) charging of my previous charger. Got this with parallel charging board and I'm charging 6 x 2200mA 3S packs in 15 minutes or less. When hooked up to 24V powersupply, I can parallel charge my 6 x 3300mA 6S packs at 30A and have fresh packs in less than 30 minutes. This is making the difference in my learning to fly my helicopters. (Posted on 4/10/2014)Value Overall Quality
