Details

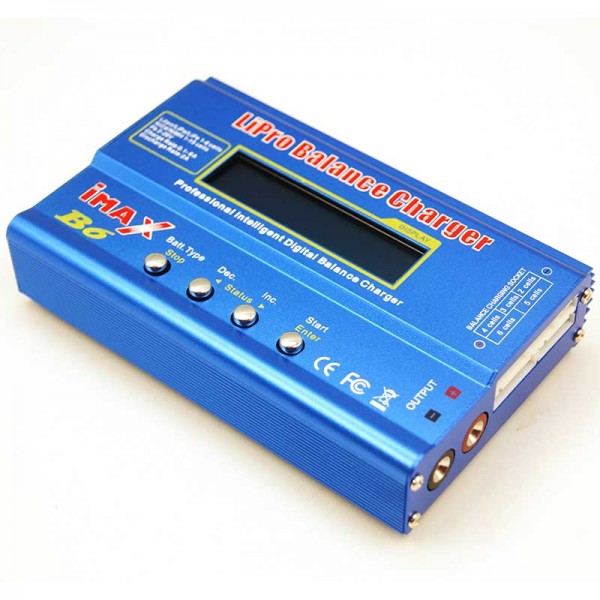

This B6 is made by Imax-RC not SkyRC, so does not have SkyRC product seal.
Specifications:
- Input Voltage: DC 11.0~18.0 V
- Max Charging Power: 50W
- Max Discharging Power: 5W
- Charging Current Range: 0.1~5.0A
- Discharging Current Range: 0.1~1.0A
- Current Drain for Balancing LiPO: 300mA/Cell
- Support Battery Type and Number of Cells: Li-ion/Polymer 1-6S; NiCd/NiMH 1-15 cells; Pb (lead-acid)battery 2V~20V
- Weight: 277g
- Dimensions: 133 x 87 x 33 mm
Features:
- DC port for 11~18V DC power supply.
- Support a wide variety of Lithium battery including LiPO, LiFe, Li-ion
- Support normal charge, balance charge, fast charge, storage charge, discharge, cycling.
- Short-circuit, reverse polarity protection.
- Can set up input voltage cutoff to protect from discharging the DC power source.
- Capacity cutoff, voltage cutoff and "safety timer" cutoff protecting from overcharging.
- Individual cell overdischarge protection.
- Can set up battery temperature cutoff. (temperature sensor required)
- In cycling, "time delay" between two cyles can be set up.
- Can set up Delta peak voltage for NiMH/NiCd battery only.
- Can set up the max charging current for NiMH/Nicd in "Auto" Mode.
- 5 user programmable memories for each type of battery.
Accessories Included:
- DC input power lead with two alligator clips.
- Charge lead with T male connector.
- T female connector to alligator clips adaptor.
- T female connector to JST connector adaptor
- T female connector to JR connector adaptor
- T female to cigarette lighter connector adaptor
You may also need Parallel Charging Board and 50W 12V Power supply
Additional Information
| SKU | IMX-CH-3443 |
|---|---|
| Charger Capacity | No |
| Power Supply | Not Include Power Supply |
| Brand | Imax |
Customer Reviews
- great little charger for the money Review by don
-
I have a multiple port charger where i can charge up to 4 batteries at a time that i use in my shop. i carry this little charger to the field and recharge the batteries that i carry already charged. it works almost exactly as my bigger chargers, only in a compact version. this charger as they say offers "more bang for the buck" (Posted on 4/9/2015)Value Overall Quality - Imax Balance Charger B6 50 Watt Review by Jim G. from Iowa
-
I needed more than one Charger to do myLi-P0 batteries I used from a day of flying. My choice I thought I would try this Imax Unit. I had an extra power supply just needed a charger with the connections that come with it . It seems to be working fine. By having a couple charging at the same time it reduces the time element you have after a days flying.It was also nice it came with T-connectors for the charger. It matched up with what I was already using.Up to 6 cells is more than enough for the average flyer.Once you've used a few times it pretty easy to operate. Value Hobbies has helped me again. Thank You. (Posted on 8/22/2014)Overall Quality Value
