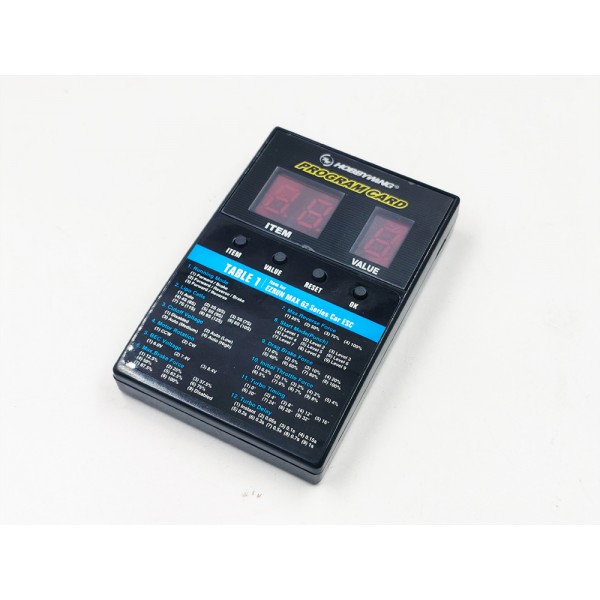

This program card is used to set the programmable parameters of Hobbywing EZRUN and XERUN brushless ESCs. The front panel of the program card is printed for EZRUN and XERUN series R/C Car ESC, but it can be used for SeaKing and Platinum ESCs also.

1 Specification
1.1 Size: 88mm (L) * 58mm (W) * 14mm (H)
1.2 Weight: 40g.
1.3 Input Voltage: 4.8-6V (If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program card)

2 Programmable Items
A) The programmable items of LED_PC2A (Available for PLATINUM series aircraft/heli ESC)
#1 Brake Setting
#2 Battery Type
#3 Low Voltage Protection Mode (Cutoff Mode)
#4 Low Voltage Protection Threshold (Cutoff Threshold)
#5 Start Mode
#6 Timing
#7 Governor Mode
#8 Motor Type
#9 PWM Frequency
#10 Built-In BEC Output
#11 Motor Load
#12 Lipo Cells

Front Panel Picture of LED_PC2A:

B) The programmable items of LED_PC2B (Available for SEAKING series boat ESC)
#1 Running Mode
#2 Lipo Cells
#3 Low Voltage Cutoff Threshold
#4 Timing

Front Panel Picture of LED_PC2B:

C) The programmable items of LED_PC2C (Available for XERUN and EZRUN series car ESC of Version2)
#1 Running Mode
#2 Drag Brake Force
#3 Low Voltage Cut-Off Threshold
#4 Start Mode
#5 Maximum Brake Force
#6 Maximum Reverse Force
#7 Initial Brake Force
#8 Throttle Neutral Range
#9 Timing
#10 Over-Heat Protection
#11 Motor Rotation
#12 Lipo Cells
(Note: The item #11 and #12 are not available for XERUN series ESC of Version 2, they only available for EZRUN series ESC)

Front Panel Picture of LED_PC2C:
