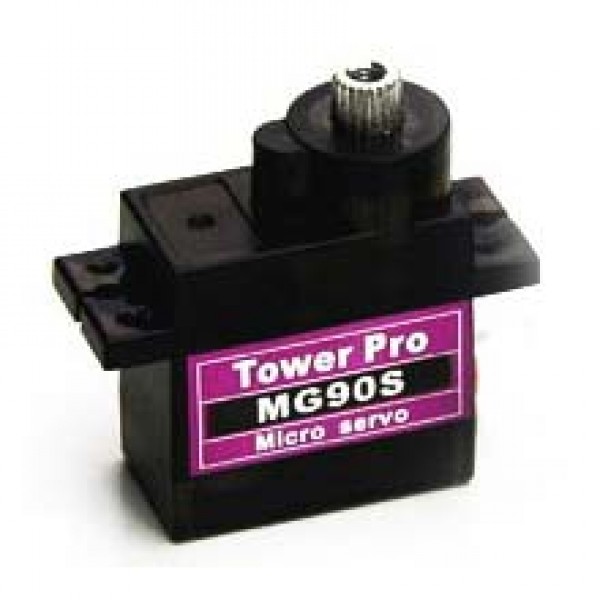

Towerpro MG90S Metal Gear Micro Servo

More Views

Towerpro MG90S Metal Gear Micro Servo

SKU: TWP-SV-0358

Availability: Out of stock

Regular Price: $7.65

Special Price $4.99

Details

This servo features:

  • Metal gear for high durability
  • Ball Bearing for smooth operation
  • Over torque protection for durability

Specification:

  • Dimension : 22 x 12 x 29mm
  • Weight: 13.4g
  • Torque : 1.8kg/cm (25oz/in) @ 4.8V; 2.2kg/cm (31oz/in) @ 6.0V
  • Speed: 0.10sec / 60 degrees @ 4.8V; 0.08sec / 60 degrees @ 6.0V
  • Temperature Range : -30 to +60 Degree C
  • Dead Band Width : 2 usec
  • Voltage : 4.8 - 6.0V
  • Connector Wire Length : 6" (150mm)

Additional Information

SKU TWP-SV-0358
Size/Class Micro
Digital/Analog Analog
Gear Type Metal
Torque (oz/in) 31
Speed (sec/60 deg) 0.08
Weight (gram) 13.4
Brand TowerPro

Customer Reviews

Pretty hard to beat this one for performance and value Review by fred
Overall
Quality
Value
I have been using these on some 48" foam aerobats, and a 450 size heli for a couple years now.
I've only had one go bad on the heli, and it failed by getting jitters, ie...not a catastrophic crash. My heli flying is scale 2d, not wild, so your results might vary.
My foam aerobat IS WILD, and I've crashed the plane but never damaged a servo.
As someone else mentioned, they do seem to have a unique post size so only the arms that come with it fit properly. (Posted on 1/7/2016)
Great bang for your buck Review by Mark Shinn
Quality
Value
Overall
I have 2 of these in my Custom F-27C Stryker that have over 200 flights and several hard crashes that show no signs of wearing out. Just purchased 4 more for a 48" Edge 540 I am turning into a float plane. My only gripe is the output shaft splines are an odd size, so finding different servo arms has been tough. (Posted on 7/8/2013)
Cheap and works Review by Neal
Quality
Value
Overall
This servo isn't the greatest, but it does work. I am not sure of the durabilty or lifespan but I have been using it on a Tricopter tail as a rudder servo with no problems so far. When it croaks, I'll just toss it and buy another (Posted on 4/3/2013)
all around good servo Review by Phil
Quality
Value
Overall
I use these servo's in all my parkflyers, profile 3D planes and combat wings. never had issues with them so far! perfect servo for the Sabre 35. plenty (Posted on 2/28/2013)
Great servo for the Saber 35 Review by Dennis
Quality
Value
Overall
Plenty of torque and speed. They stand up to the abuse I've given them. (Posted on 12/11/2012)
