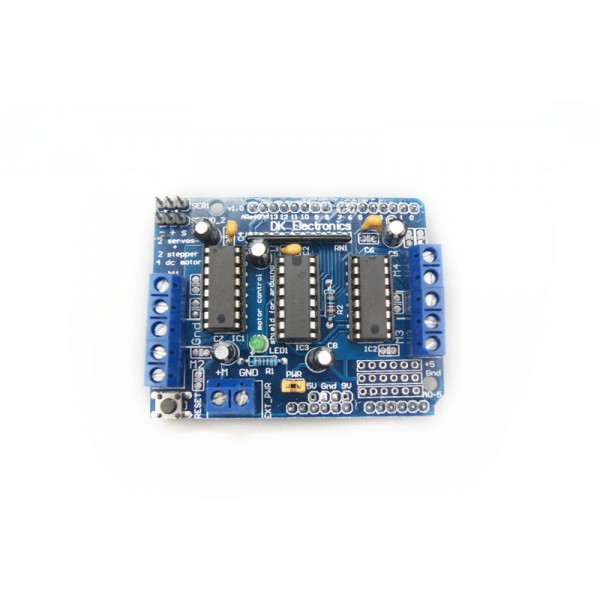

Motor Drive Expansion Board Module L293D For Arduino Duemilanove Mega UNO

More Views

Motor Drive Expansion Board Module L293D For Arduino Duemilanove Mega UNO

Be the first to review this product

SKU: VHB-AC-5142

Availability: Out of stock

$1.99

Details

Decription:

  • Arduino is a great starting point for electronics, and with a motor shield it can also be a nice tidy platform for robotics and mechatronics. Here is a design for a full-featured motor shield that will be able to power many simple to medium-complexity projects.
  • 2 connections for 5V 'hobby' servos connected to the Arduino's high-resolution dedicated timer - no jitter!

Features:

  • Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping.
  • 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, 4.5V to 25V
  • Pull down resistors keep motors disabled during power-up
  • Big terminal block connectors to easily hook up wires (10-22AWG) and power Arduino reset button brought up top
  • 2-pin terminal block to connect external power, for seperate logic/motor supplies
  • Tested compatible with Mega, Diecimila, & Duemilanove

Package Content:

  • 1 x Motor Drive Expansion Shield Board Module L293D&nbsp

Additional Information

SKU VHB-AC-5142
Type Expansion Board
