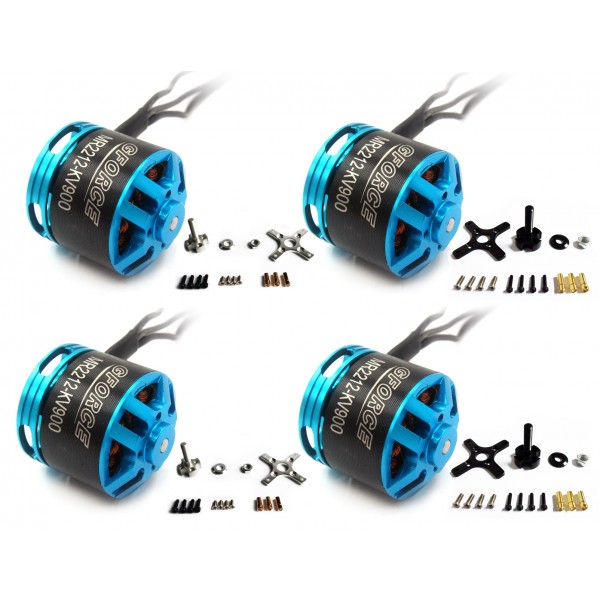

This package includes four MR2212-900kv motors, two regular shafts and two reverse shafts.
Motor Specifications:
- Shaft Diameter: 3.17mm
- Shaft Length: 32mm
- Outside Diameter: 28mm
- Length: 30mm
- Weight: 57g (2.01oz)
- Length of motor wire: 300mm
Motor Dimensions:
TEST DATA:
| Propeller(in) | Voltage(V) | Amps(A) | Thrust(g) | RPM/Min | Power(W) | (G/W) |
| 9047 | 8.5 | 6 | 400 | 6280 | 51 | 7.84 |
| 10 | 7.9 | 530 | 7380 | 80 | 6.63 | |
| 11.1 | 9.3 | 650 | 8200 | 103.2 | 6.3 | |
| 12 | 10.7 | 710 | 8900 | 128.5 | 5.53 | |
| 1047 | 7.4 | 7 | 440 | 5500 | 52 | 8.46 |
| 8 | 7.8 | 520 | 5900 | 62.5 | 8.32 | |
| 10 | 10.9 | 690 | 7400 | 110 | 6.24 | |
| 11.1 | 12.8 | 840 | 8200 | 142 | 5.92 | |
| 1145 | 8.5 | 11.8 | 650 | 6300 | 100 | 6.5 |
| 10 | 14 | 840 | 7400 | 140 | 6 | |
| 11.1 | 17 | 910 | 8200 | 189 | 4.81 |
Additional Information
| SKU | SAT-MT-2648 |
|---|---|
| Motor Weight (g) | 65 |
| KV | 900 |
| Estimated Output (watt) | 200 |
| Motor Type | Out-Runner |
| Motor Class | Park-400 |
| Motor Usage | Airplane |
Customer Reviews
- Works Review by Ochadd
-
The motors overall work well. I had a few issues though. The cable on one of the motors comes out of the wrong position. The wires aren't protected by the quadcopter arm like the other three. The black shafts are painted so nuts, propellers, washers, etc don't fit the same as the silver unpainted shafts. Motor mount screws were too short to mount to the Tarot 450 frame I also bought here. Had to visit the hardware store for replacements. (Posted on 6/19/2013)Quality Value Overall
