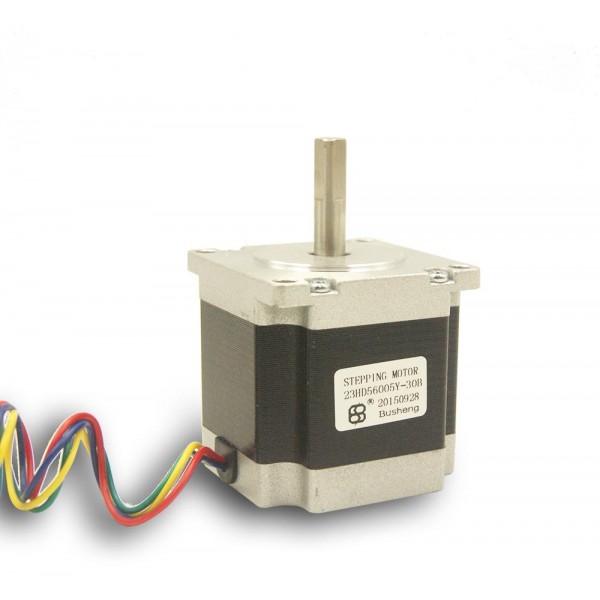

Highlights:

• 1-meter motor wire.Two-phase 4-wire, available for rotation forward and reverse.
• 1.8 deg step angle (200 steps/revolution)
• Each phase draws approx. 3A, holding torque of approx. 1.2Nm(170 oz.in).

Specifications:

• Rated current (one-phase): 3A DC.
• Stepping angle: 1.8°.
• Environment Temperature: -20~50℃.
• RH: 90%MAX
• Mounting Position: Axis horizontal or vertical installation
• Direct-current winding resistance (25℃): 1.6Ω±10%
• Wnding inductance: 2.2mH±20%
• Cogging torque:45mN.m REF.
• Holding torque: ≥1.2N.m（I=3A）
• Max. no-load starting frequency: ≥1100pps
• Max. no-load running Frequency: ≥8000pps
• Temperature rise: Step Angle Accuracy: 1.8°± 5%
• Rotary inertia: 280g.cm2
• Motor Weight: 0.7kg
• Insulation resistance: Cold insulation resistance should be more than 100mΩ (between the Motor stator core and Terminal)
• Dielectric strength: The space between the Motor stator core and Terminal should be able to withstand AC600V/1s without breaking down.
• Leakage current is less than 1mA.
