Details

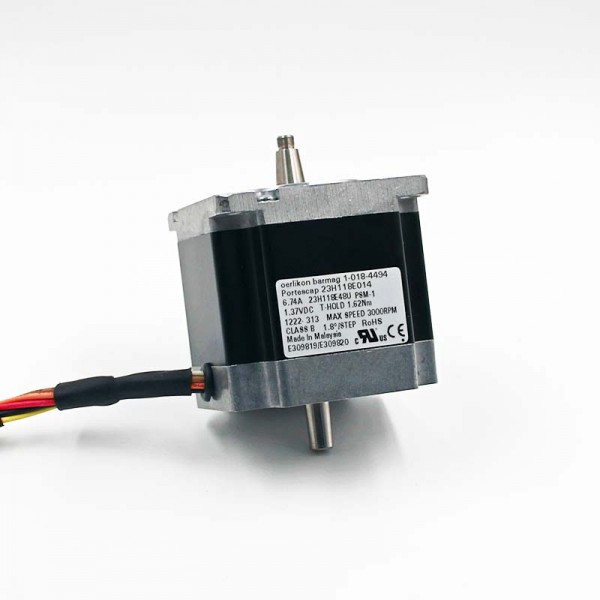

- Manufacturer Part Number: Portescap 23H118E014 57x54mm
- Step Angle: 1.8°
- Voltage: 12V DC
- Max.Current: 6.74A
- Max Speed: 3000RPM
- Holding Torque: 1.62Nm (229.4 oz.in)
- Control Cable: 4
- Weight: 1.6lb(712g)
- Shaft Diameter: 6.35mm
- Cone Shaft Diameter: 5mm
- Shaft Length: 14mm
- Cable: 2.9ft(870mm)
- Resistance=18Ω
- There are some blemishes that do not affect use on the stepper motor exterior.
- This hybrid stepper motor is used in engraving machine / 3D printer. The biggest characteristic is high speed. Generally, the current can be selected according to the actual torque and speed. 2A-6A can be used.
Additional Information
| SKU | VHB-MT-6200 |
|---|
