This EDF system was factory balanced by a balancing machine. We strongly recommend not to disassemble the fan unit and motor, otherwise the dynamic balance would be lost.

Features:

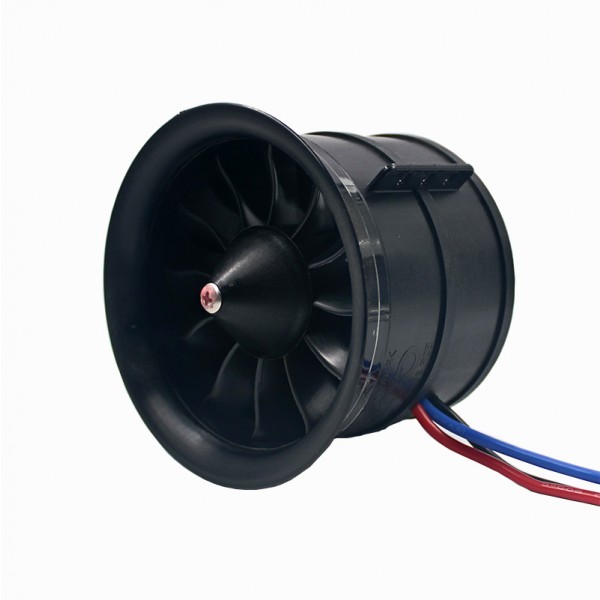

• High performance 90mm 12 blade EDF unit.
• Motor already installed, dynamic balanced by factory.
• With removable horn shape intake ring included.
• 12 blade fan produces more realistic, lower-pitch sound.
• Suitable for most 90mm EDF jets on the market. For some jets, removal of some foam might be needed to accommodate.

Descriptions:

• Outside Diameter: 98.0mm
• Ducted Fan Length: 81mm ( With wing intake ring )
• Rotor DIameter: 90mm, 12 blades
• Overall Weight: 372g (Fan + Motor)
• Motors: 1450KV Outrunner Brushless Motor
• Recommended Power Source: 6S LiPO
• Static Thrust: Up to 3000g At 22.2v (102A), 3700g At 25.2v (124A)
• Connector: 4.0mm Bullet Connector
