Details

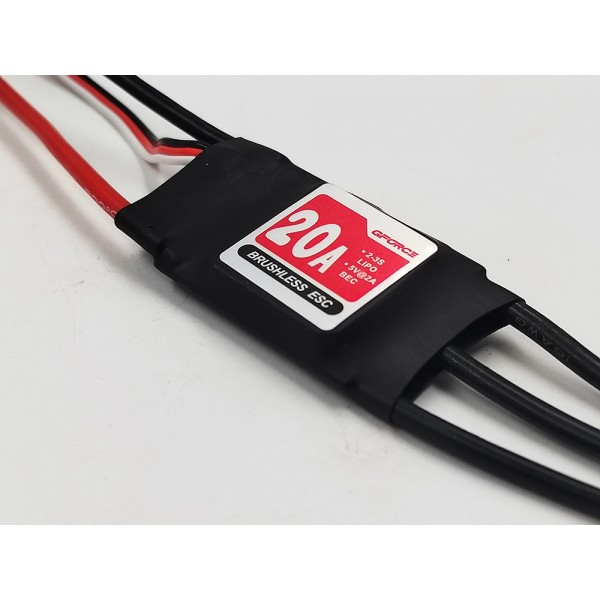

1 Specification
- Output: Continuous 20A, Burst 25A up to 10 Secs.
- Input Voltage: 2-3S LiPO
- BEC: Linear mode BEC 2A
- Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
- Size: 42mm (L) * 25mm (W) * 8mm (H).
- Weight: 28g.
- Compatible with Hobbywing Flyfun/Skywalker programming card.
- 3.5m bullet connectors and T-Connector pre-soldered.
2 Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:
- Brake Setting: brake enabled / brake disabled.
- Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).
- Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
- Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
- Start Mode: normal / soft / very soft.
- Timing: low / medium / high.
- Lipo Battery Cells: Auto calculate / Set the cells number manually.
- Reset: Reset all the programmable items to its default setting.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
Manuals
Additional Information
| SKU | VHB-SC-4493 |
|---|---|
| Output | 20A |
| Input Voltage | 2-3S LiPO |
| Usage | Airplane/Heli/Multicopter |
| BEC | Built-in Linear BEC |
| ESC Series | GForce Series |
Customer Reviews
- Great for the price Review by Matt
-
these are great little esc's, I'm running a few of them now and have no problems. (Posted on 7/1/2015)Quality Value Overall
