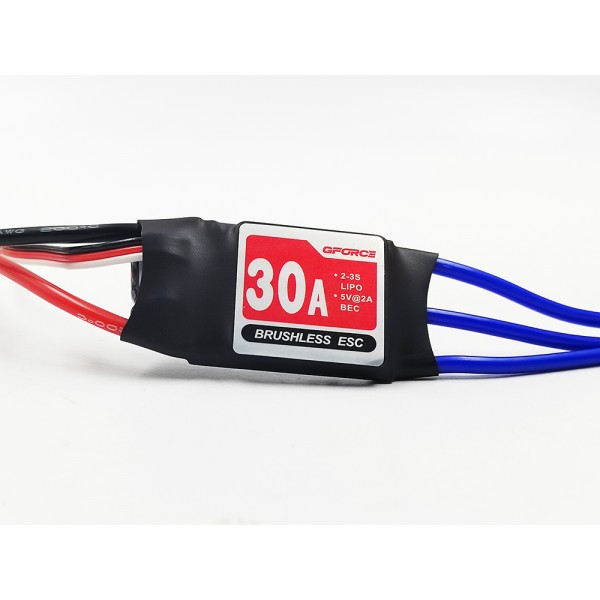

1 Specification

• Output: Continuous 30A, Burst 40A up to 10 Secs.
• Input Voltage: 2-3S LiPO battery.
• BEC: 2A / 5V (Linear mode).
• Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
• Dimension: 45 x 24 x 7mm.
• Weight: 29g.
• Compatible with Hobbywing Flyfun/Skywalker programming card.
• 3.5m bullet connectors and XT60 Connector pre-soldered.

2 Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:

• Brake Setting: brake enabled / brake disabled.
• Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
• Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
• Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
• Start Mode: normal / soft / very soft.
• Timing: low / medium / high.
• Reset: reset all the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
