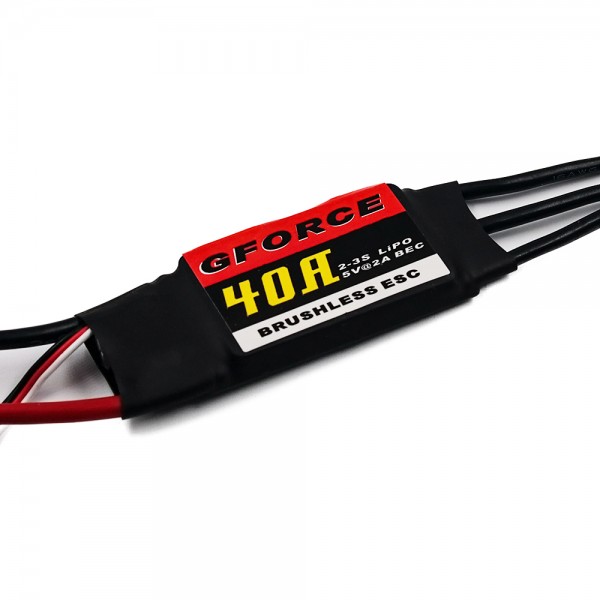

1 Specification

• Output: Continuous 40A, Burst 55A up to 10 Secs.
• Input Voltage: 2-3S lipo
• BEC: Linear mode BEC 5V/2A
• Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
• Dimension: 68 x 25 x 8mm.
• Weight: 40g.
• Compatible with Hobbywing Flyfun/Skywalker programming card.

2 Features
2.1 Safety Arming Feature:Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:

• Brake Setting: brake enabled / brake disabled.
• Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).
• Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
• Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
• Start Mode: normal / soft / very soft.
• Timing: low / medium / high.
• Lipo Battery Cells:Auto calculate/Set the cells number manually.
• Reset:resetallthe programmable items to its default setting.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
