Details
Specification

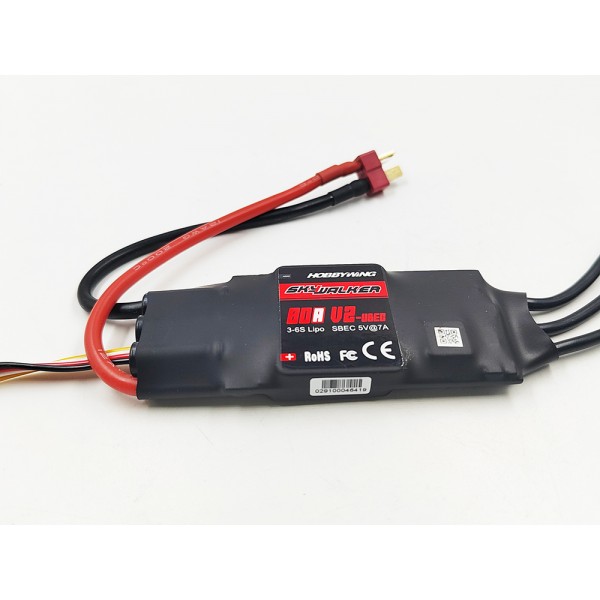

- Output: Continuous 80A, Burst 100A up to 10 Secs.
- Input Voltage: 2-6S LiPO
- BEC: Switch mode BEC 5A/5V
- Max Speed: 210,000rpm for 2 Poles brushless motor, 70,000rpm for 6 poles brushless motor, 35,000rpm for 12 poles brushless motor.
- Connectors: 4mm bullet connectors and T-Connector pre-soldered.
- Size: 86mm (L) * 38mm (W) * 12mm (H).
- Weight: 82g.
Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:
- Brake Setting: brake enabled / brake disabled.
- Battery Type: Li-xx (Li-ion or LiPO) / Ni-xx (NiMH or NiCd).
- Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
- Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
- Start Mode: normal / soft / very soft.
- Timing: low / medium / high.
- LiPO Battery Cells: Auto calculate / Set the cells number manually.
- Reset: the programmable items to its default setting.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
Additional Information
| SKU | HWG-SC-4447 |
|---|---|
| Output | No |
| Input Voltage | 2-6S LiPO |
| Usage | Airplane/Heli/Multicopter |
| BEC | Built-in Switching BEC |
| ESC Series | Hobbywing SkyWalker |
Customer Reviews
- Great esc Review by Matthew
-
Using on a Gforce g32 with 3300 4s lipo on my Sabre 47 from vh and i used epoxy to waterproof Tim for use on arc boogie board with the same motor setup (Posted on 7/6/2018)Quality Value Overall
