Details

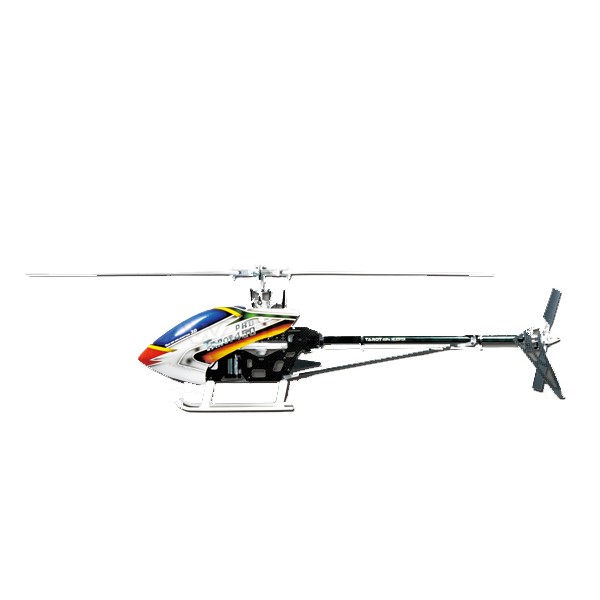

Tarot 450 kits are among the best quality clones of the Align T-Rex available. They also offer complete parts compatibility with all stock Align parts. The Tarot TL20006 kit is a clone of the T-REX 450 PRO 3GX. Tarot part number: TL20006-sliver. Electronics not included.
Specifications:
- Length: 638mm
- Height: 218mm
- Main Rotor Diameter: 710mm
- Tail rotor diameter: 158mm
- Motor Pinion Gear: 14T
- Main Drive Gear: 150T
- Tail Drive Gear: 25T
- Tarot part number: TL20006-sliver
| Newly improved low wind resistance specialized flybarless rotor head assembly, with reduced distance between rotor head and frame, effectively lowering the CG for better 3D performance. | Highly rigid bearing for better swashplate performance. | Integrated battery / ESC mount, allowing adjustment based on battery dimension for optimal CG of the helicopter. |
|
|
|
|
| Newly designed gyro mount. | Newly designed main frame set to simplify servos installation and maintenance. | Highly rigid frame with servo mount.The motor mount is helpful to cool the motor. |
|
|
|
|
| Vertical rudder servo mount design moving the CG closer to center. | Newly improved side frame plate with special 3GX mounting locations. It can be mounted inside the frame, or behind the antirotation guide for better wire management and cleaner look. | Unique opposing weighted tail blade grips effectively increase rudder and gyro performance. |
|
|
|
|
| Fiberglass painted canopy. | Single piece integrated landing gear. | |
|
|
|
Additional Information
| SKU | FYM-HL-2421 |
|---|---|
| Type | ARF |
| Class | 450 |
| Construction | Carbon Fiber |
| Tail Rotor System | Torque Tube |
Customer Reviews
- Great little flybarless machine! Review by John
-
The assembly went well with all parts in the box for the build along with thread locker and grease. The manual differs from the parts as far as the head axle and bearing/shim line-up, but a quick check on the internet showed how these (upgraded) parts assembled. Unlike many 450's, there is room in this design to mount the electronics, especially using the ZXY-S unit and the wiring can be neatly routed. All parts and design are of Top-Notch quality. Will continue to purchase the Tarot products from Value Hobby. BTW, the shipping was low priced and I received the package in 2 days! (Posted on 2/5/2014)Overall Quality Value
