Details

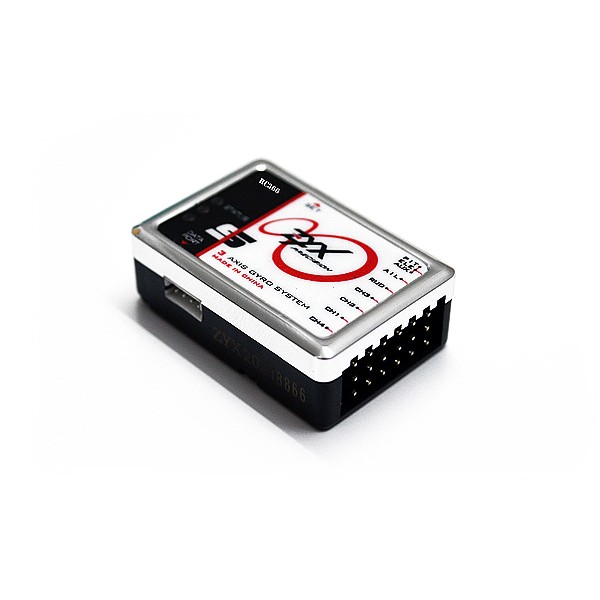

The ZYX-S high performance multi-function 3-axis gyro system is the lightest flybarless system in the world. It is compatible with all 200-700 nitro or electric power helicopters and support 90, 120, 135, and 140 degree CCPM swashplate systems. Furthermore, it is compatible with all types of servos; supports both digital and analog 1520us, 960us and 760us servos. The setup process is quite easy, takes only about ten minutes. This unit also supports firmware updates.
The new ZYX-S version now supports S.BUS and DSM2/DSMJ satellite receiver functionality! This means not only can you use this with your S.BUS radio system, but you can also eliminate the need for using a separate receiver by simply connecting a DSM2/DSMJ satellite directly to the ZYX-S!
ZYX-S 3-axis gyro system provides two different helicopter flight modes - F3C and 3D, which can satisfy pilots from beginners to advanced. It also now supports 4 additional aircraft configurations as well: Quadcopter +, quadcopter X, standard fixed wing and delta fixed wing. This makes the ZYX-S a very versatile stabilization system suitable for virtually all types of aircraft.ZYX-S 3-axis gyro system has many adjustable options; pilots can adjust the parameter of swashplate and tail servo response, which allows the user to fine tune the handling characteristics of the helicopter.
This high performance 3-axis gyro system uses MEMS gyro sensors which allow the pilot to control the flying status of helicopter precisely. Built-in pirouette optimization function; stabilizes the helicopter while pirouetting, making the advanced maneuvers much more precise.
Specifications:
- Dimensions: 37mm x 25mm x 13mm
- Weight: 9.8g(without wires)
- Operating Voltage: 3.5~9V
- Sensor Technology: 3 MEMS angular rate sensors
- Flight Modes: F3C/3D
Package includes:
- ZYX-S 3-Axis Flybarless System
- Gyro mounting pads x 5
- Signal wire x 3
- Sticker x 1
Additional Information
| SKU | FYM-HL-2625 |
|---|
Customer Reviews
- Good unit Review by John
-
It took a while to figure this unit out since it is my first flybarless unit. Once I found out the ins/outs by researching on the internet the gyro set-up in very short order and works very well. I have not flown it much yet, but the set-up and test flights show that this was a good purchase. I did have to order a cable to hook up the DSM satellite to the gyro which Value Hobby does not carry; if I knew at the time of purchase I would have ordered from a shop which had it at the same time of the VH order. Great service/shipping from VH; keep the good products coming! (Posted on 2/5/2014)Overall Quality Value
ZYX 3 AXIS GYRO 4.01 Software
