Details

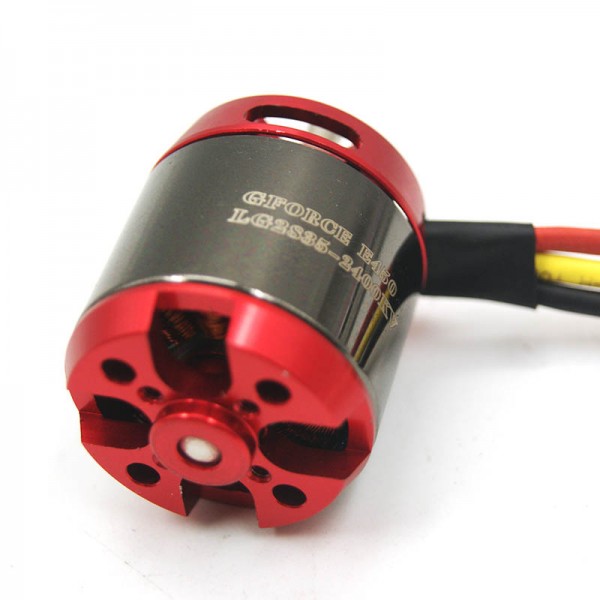

GForce E450 (2835-2400KV) is a powerful high-speed outrunner motor intended for pylon racers and other high speed planes. It provides excellent performance for planes weighing upto 20oz. Proper ventilation is essential when ran at high-throttle.
Specifications:
- Diameter: 27.5mm
- Length: 33mm
- Stator size: 2216
- Connector: 3.5mm bullet connector
- Shaft diameter: 4mm
- Mounting holes spacing: 16mm/19mm
- Number of slots: 12
- Number of poles: 10
- Non-load current(10V): 1.7A
- Resistance: 29mOhm
- Power(8mins flight): 680W
- Max current(15s): 43A
- Max power(15s): 710W
Recommended Setup:
- 60A ESC
- 6040 prop (4S LiPO)
- 7035 prop (3S LiPO)
Additional Information
| SKU | VHB-MT-5298 |
|---|---|
| Motor Weight (g) | 68 |
| KV | 2400 |
| Estimated Output (watt) | No |
| Motor Type | Out-Runner |
| Motor Class | Park-450 |
| Motor Usage | Airplane |
