Details

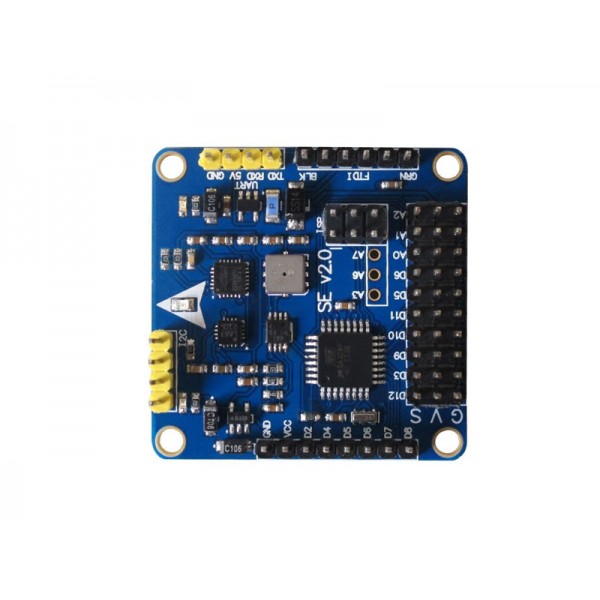

Features:
- ATmega328P microcontroller
- MPU6050 6-axis digital gyro/accelerometer.
- BMA180 Accelerometer
- BMP085 barometric pressure sensor
- HMC5883L 3-axis magnetometer
- I2C socket for extend sensor, I2C LCD/OLED display or CRIUS I2c-GPS NAV board
- FTDI/UART TTL socket for debug, upload firmware or LCD display
- Separate 3.3V (150mA) and 5V(500mA) LDO voltage regulator
- Up to 8-axis motor output
- 6 input channels for standard receiver and PPM SUM receiver
- 2 servos output for PITCH and ROLL gimbal system
- Can utilize a servo's output to trigger a camera button
- Small size, 35x35mm mounting holes( can be changed to 45mm by distribution board)
Flight mode:
- ARCO
- Level
- Alt hold
- Head lock
- Headfree
- GPS Hold (Need GPS receiver + I2C-GPS NAV Board)
- GPS Return to home position (Need GPS receiver + I2C-GPS NAV Board)
Basic Modes:
Optional Modes:
Now this board supports singelcopter, bicopter, tricopter, quadp, quadx, Y4, Y6, Hex6, Hex6x, Octox8, Octoflatp, Octoflatpx, Flying wing, V-tail4, Fixed-wing airplane, gimbal system.
What is the MWC?
"MWC' is an abbreviation for "MultiWii Copter'. first originally writen by French Alex and after two years of joint efforts of many enthusiasts, this open source program has become increasingly mature. Now high-preformance economically priced MWC control board is very popular. Through the MWC program to control the hardware platform, the hobbyists can easily achieve a high level flight experience on their multi-rotor aircraft. It is convenient for the pilots to adjust depending on the different flight requirements such as aerial photography, FPV, aerobatics and so on .
Compared to KK or ACM, MWC has a more stable flight performance, not requires much experience for the beginners and have a more intuitive modification process.(there is GUI where you can visualize and configure several indicators and parameters)
If you want to get more information about MWC, get to
2. http://www.rcgroups.com/forums/showthread.php?t=1261382&pp=100
Additional Information
| SKU | VHB-AC-1563 |
|---|
Customer Reviews
- All in one package. Review by Don
-
I originally bought this product for my first F/C. It was a bit confusing. But after reading a few blogs I was amazed what this board can do. Auto level is really great and the built in barometer for altitude hold is really nice. The board has some expandability for adding a l.e.d. board for around 8 bucks and a g.p.s. for around 18 dollars. The multiwii is probably the best choice for multi-rotors. There is plenty of YouTube videos and Web sites to get this in the air. So if you want to go from a dual copter to a octocopter it just a matter of hooking it back to the computer. I just hope to see it back sometime. (Posted on 6/23/2014)Overall Quality Value
