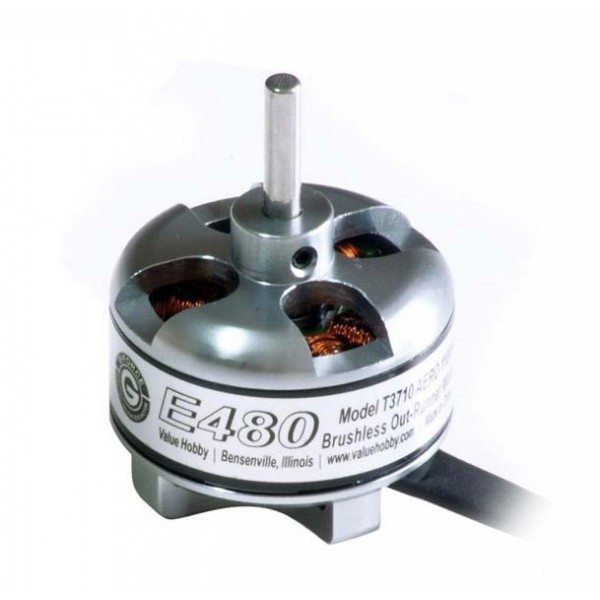

GForce E480 Brushless Outrunner Motor (3710-1100KV)

More Views

GForce E480 Brushless Outrunner Motor (3710-1100KV)

Be the first to review this product

SKU: TPB-MT-0170

Availability: Out of stock

$23.00

Details

This motor does not have label sticker on it.

This 480-size brushless outrunner motor provides quiet, efficient power from a small and light-weight package. It's ideal for 3D park flyers 30-40oz and scale park flyers upto 3.5lbs, using 3S (11.1V) 2200 - 3000mAh LiPO batteries. It is capable of producing up to 4 lb of thrust and generate about 350W of power.

Specifications:

  • KV: 1100
  • Motor Diameter : 37mm
  • Weight: 3.5oz (100g) for motor only, not including mounting accessories
  • Shaft Diameter: 4mm
  • Battery: 3S LiPO
  • Max Load: 38A
  • Max Efficiency: 28A

Recommended Setup:

  • 40A brushless ESC
  • 3S LiPo and at least 2000-3000mAh
  • Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
  • With 3S LiPO: 10x6, 11x5



Motor Dimensions: (in millimeter)

Included Hardware:

  • 1x Collet-type Prop Adapter
  • 1x Motor Mount
  • 1x Spinner
  • 3x Gold Bullet Connectors
  • 4x Screws
  • 2x Black Shrink Tube
  • 2x Red Shrink Tube
  • 2x Blue Shrink Tube

Recommended Setup:

  • 40A  brushless motor ESC
  • 3S LiPO and at least 2200mAh.
  • Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
    With 3S LiPO: 11x5.5E
  • The above prop selections are recommended for sports flying at open throttle. You may try using larger props if you do not fly at constant open throttle.

Additional Information

SKU TPB-MT-0170
Motor Weight (g) 100
KV 1100
Estimated Output (watt) 320
Motor Type Out-Runner
Motor Class Park-480
Motor Usage Airplane
