Details

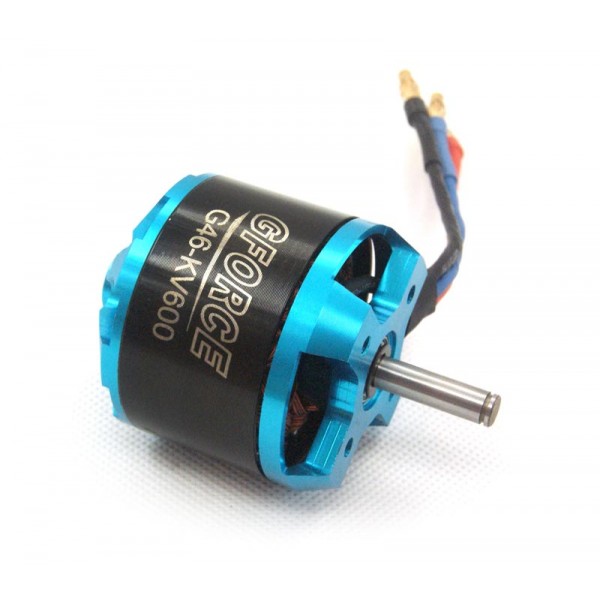

The G46 (5055) brushless out-runner motor can replace a .46-.55 two stroke nitro engines. It is equivalent to AXI 4120 and E-Flite Power 46. It is capable of producing up to 9 lb of thrust and generate about 1000W of power.
Specifications:
- KV: 600.
- Weight: 10.4oz (295g) for motor only, not including mounting accessories.
- Motor Diameter: Approx. 50mm
- Shaft diameter: 6mm
- Connector: 4mm bullet connector
- Max efficiency: Approx. 50A
- Max Load: Approx. 60A
Motor Dimensions:
Recommended Setup:
- 80A Opto brushless motor ESC
- 3-5S LiPO and at least 4000-5000mAh.
- Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
With 5S LiPO: 12x6, 11x5.5
With 4S LiPO: 14x6, 13x6.5
With 3S LiPO: 14x8, 13x8 - The above prop selections are recommended for sports flying at open throttle. You may use slightly larger props if you do not fly at constant open throttle.
Included Accessories:
This motor includes prop adapter and radial mount shown below. The motor has bullet connectors pre-installed, and includes female bullet connectors for use with your ESC.
Mounting Options:
In Front of the Firewall - The included accessories allow you to mount the motor in front of the firewall. The radial mount is installed on the back and prop adapter is installed on the front.
Behind the Firewall - If you would like to mount it behind the firewall, you will need to purchase the 6mm Collet Adapter.
Additional Information
| SKU | SAT-MT-2322 |
|---|---|
| Motor Weight (g) | 295 |
| KV | 600 |
| Estimated Output (watt) | No |
| Motor Type | Out-Runner |
| Motor Class | Power-46 |
| Motor Usage | Airplane |
Customer Reviews
- very strong, reliable , good buy, want another when in stocl Review by Greg
-
I'm very impressed with the power to weight of the G-46 and it puts out as much power to me as a 60-nitro. (Posted on 9/22/2013)Quality Value Overall
